Remove/install trim at C-pillar - AR68.30-P-4490TA

MODEL 211.2

Shown on left C-pillar paneling

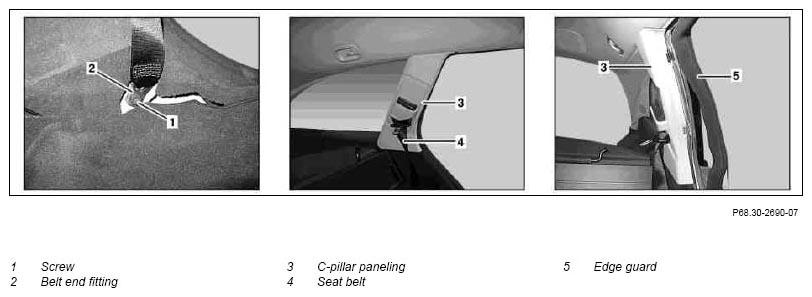

Fig 1: Identifying C-Pillar Trim Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Fold right rear seat cushion toward front	See user's manual
2.1	Fold left rear seat cushion toward front	Only when removing left C-pillar paneling (3). See user's manual
3	Remove screw/bolt (1) and remove belt end fitting (2)		*BA91.40-P-1012-01A
4	Fold right rear seat backrest toward front	See user's manual
5.1	Fold left rear seat backrest toward front	Only when removing left C-pillar paneling (3). See user's manual
6	Loosen edge guard (5) in area of C-pillar paneling (3)
7	Loosen C-pillar paneling (3) with assembly wedge		*110589035900
8	Remove C-pillar paneling (3) and install seat belt (4)
9	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 211.0
BA91.40-P-1012-01A	Bolt, belt end fitting to vehicle floor	Nm	32
