Remove/install rear seat cushion - AR91.12-P-1020TB

MODEL 211.2

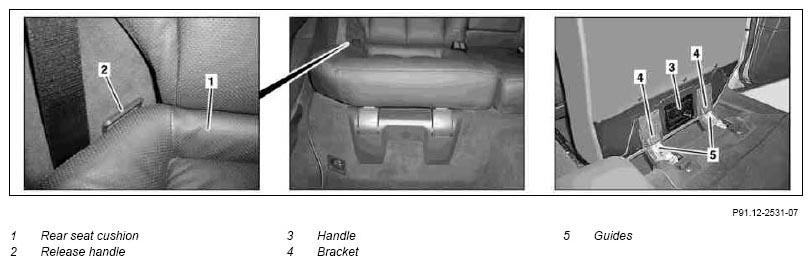

Fig 1: Identifying Rear Seat Cushion Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Pull release handle (2) upwards and place left or right rear seat cushion (1) into vertical position	Installation:  Rear seat cushion (1) must latch into place.
2	Pull handle (3) on the back of the rear seat cushion (1) and remove	Installation:  Insert bracket (4) of rear seat cushion (1) into the guides (5) at the pivot bearing and latch into place.
3	Install in the reverse order
