Left/right exterior rearview mirror lens adjustment, function - GF88.79-P-2008T
Model 211.0/2
Function prerequisites
- No overvoltage or undervoltage
- Circuit 15R or circuit 15 ON
- Storage of mirror lens position not currently active (with code (275a) Memory package (driver's seat, steering column, rearview mirror)
Function

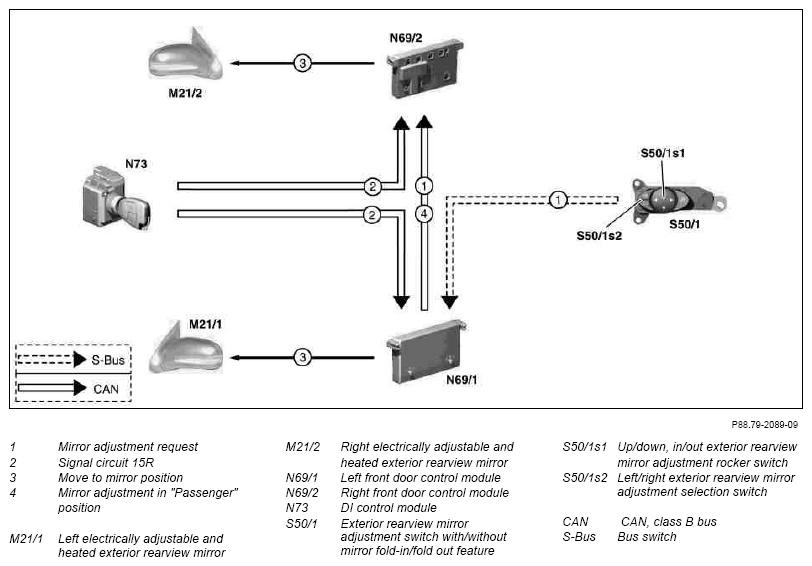

Adjustment is possible with the exterior rearview mirror adjustment switch with/without mirror fold-in/fold-out feature (S50/1).
Selection of the exterior rearview mirror to be adjusted can be accomplished with the left or right exterior rearview mirror adjustment selection switch (S50/1s2).
The mirror lens can be adjusted horizontally and vertically with the up/down, in/out exterior rearview mirror adjustment rocket switch (S50/1s1).
The left electrically adjustable and heated exterior rearview mirror (M21/1) is actuated by the left front door control module (N69/1) and the right electrically adjustable and heated exterior rearview mirror (M21/2) by the right front door control module (N69/2).
| Exterior rearview mirror adjustment switch, location/purpose | GF88.79-P-3001T |
| Exterior rearview mirror adjustment motor, location/purpose | GF88.79-P-4102T |
| Left front door control module, location/purpose | GF72.29-P-4115T |
| Right front door control module, location/purpose | GF72.29-P-4116T |
