Exterior rearview mirror adjustment switch, location/purpose - GF88.79-P-3001T

Model 211.0/2

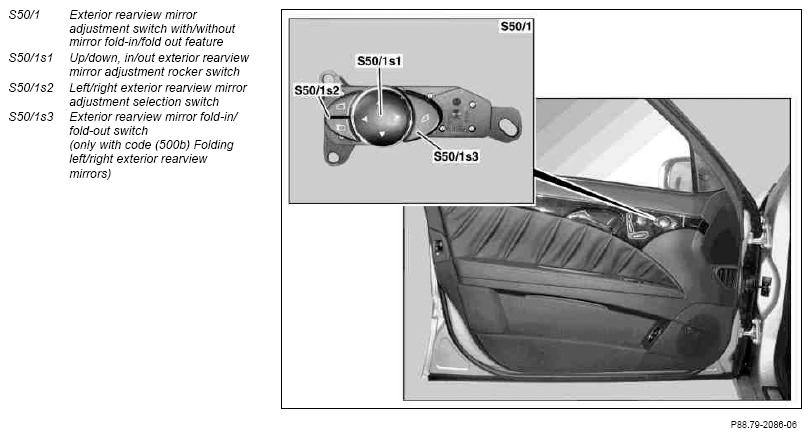

Fig 1: Identifying Exterior Rearview Mirror Adjustment Switch Components
G07285941Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Exterior rearview mirror adjustment switch, location The exterior rearview mirror adjustment switch with/without mirror fold-in/fold-out feature (S50/1) is located in the paneling on the driver's door at the top front.
Exterior rearview mirror adjustment switch, purpose The exterior rearview mirror switch with mirror fold-in/fold-out feature (S50/1) reads in the specific adjustment request and relays it to the front left door control module.
