Exterior rearview mirror adjustment motor, location/purpose - GF88.79-P-4102T

Model 211.0/2

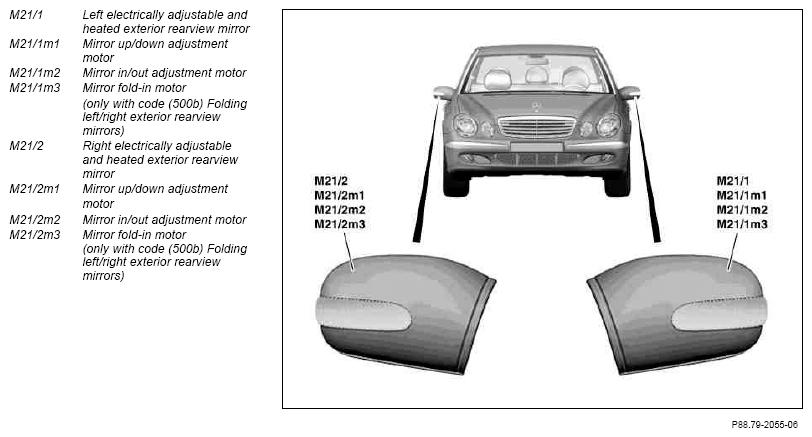

Fig 1: Identifying Exterior Rearview Mirror Adjustment Motor Components
G07285942Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Exterior rearview mirror adjustment motor, location The mirror adjustment motors (M21/1m1, M21/1m2, M21/2m1, M21/2m2) and mirror fold-in motors (M21/1m3, M21/2m3) are located in the associated electrically adjustable and heated exterior rearview mirrors (M21/1, M21/2).
Exterior rearview mirror adjustment motor, purpose Adjust mirror or mirror housing according to actuation in each case.
