Fold in left/right outside mirror, function - GF88.79-P-2002T

MODEL 211.0/2 with CODE (500) Folding left/right outside mirrors

Manual fold-in/out, function

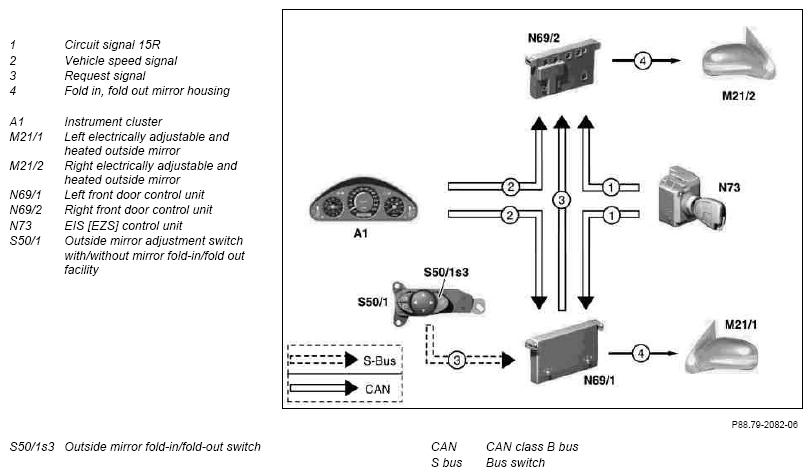

Fig 1: Left/Right Outside Mirror Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Manual fold-in/out function

Function requirements

Circuit 15 On
No overvoltage or undervoltage
v < 47 km/h (mirror housing folded in)
No mirror lens adjustment active

When the fold-in/out outside mirror switch (S50/1s3) is actuated, the outside mirror is moved to the garage position (mirror folded in) or driving position (mirror folded out). The mirror fold-in motors are actuated by the left front door control unit (N69/1) and right front door control unit (N69/2).

Automatic mirror housing adjustment via v signal

The automatic mirror housing adjustment is intended to prevent the mirror from vibrating when folded out while driving. For this purpose, the mirror fold-out motors are actuated once for 1 s in the driving direction at a speed of v > 47 km/h. This ensures that the mirror housing arrests.

Automatic fold-in/out function (only on model 211.2) up to 30.5.05 except code (498) Japanese version

Function requirements

Circuit 15 c Off
No overvoltage or undervoltage
Function in instrument cluster (A1) activated

When the vehicle is locked with the central locking function, both mirror housings are folded in. The next time the vehicle is unlocked with the central locking and the driver or passenger door are opened, the mirror housings are returned to the previous position. The status of the central locking (locked, unlocked) is transmitted to the CAN, class B bus by the EIS control unit (N73).

Outside mirror adjustment motor, location/task	GF88.79-P-4102T
Outside mirror adjustment switch, location/task	GF88.79-P-3001T
Driver front door control unit, location/task	GF72.29-P-4115T
Passenger-side front door control unit, location/task	GF72.29-P-4116T
Electronic ignition switch control unit, location/task	GF80.57-P-4120T
