Actuate alarm with panic button, function - GF80.50-P-3014TA

MODEL 211.0/2 with code (551a) Anti-theft alarm system (ATA) with code (763) Radio remote control with panic switch

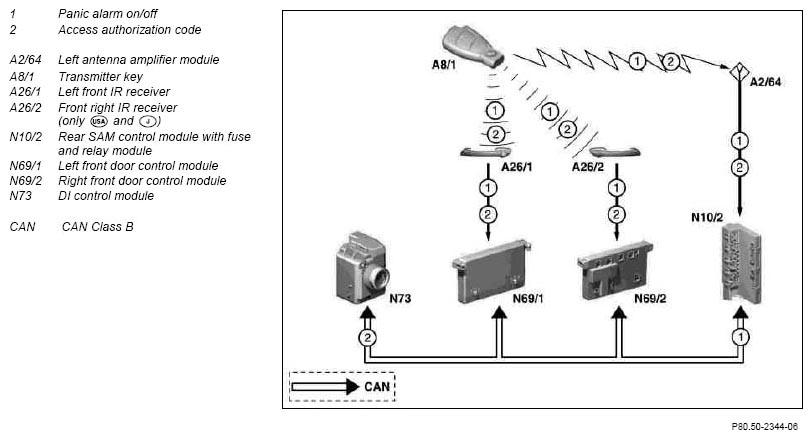

Fig 1: Actuate Alarm With Panic Button Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Panic alarm

The panic alarm can only be started via the transmitter key (A8/1) (panic alarm transmit button pressed for 1 s)

The panic alarm can be terminated by actuating again (briefly pressing panic alarm on remote control) or by inserting the transmitter key (A8/1) into the transmitter key opening in the EIS control module (N73).

The panic alarm has priority over the ATA [EDW] alarm. If both alarms are set, the panic alarm is emitted.

The panic alarm function and the alarm duration are programmable via diagnosis.

Operating procedure

The signal of the transmitter key (A8/1) is received by the vehicle and is relayed to the rear SAM control module with fuse and relay module (N10/2) via the CAN class B bus after the transmitter key code is checked by the EIS control module (N73).

The rear SAM control module with fuse and relay module (N10/2) starts an optical and acoustic alarm according to national regulations.

The optical alarm is output by the vehicle lighting

The acoustic alarm is output by the alarm signal horn.

Optical alarm, function	On vehicles without code (491) USA version	GF80.50-P-4006T
	On vehicles with code (491) USA version	GF80.50-P-4006TA
transmitter key purpose/design/function		GF80.57-P-4101T
Electronic ignition switch control module, location/purpose		GF80.57-P-4120T
Rear SAM control module with fuse and relay module, location/purpose	Model 211.0	GF54.21-P-4130T
	Model 211.2	GF54.21-P-4130TA
