Remove/install rear door power window - AR72.12-P-1810T

MODEL 211.0/2

Shown on left rear door, model 211.0

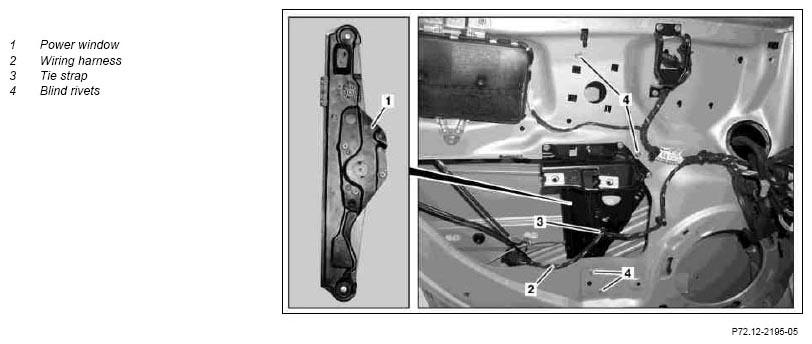

Fig 1: Identifying Rear Door Power Window Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of injury  due to hands being crushed when window glass is not secure	Secure window to prevent it from falling down.	AS67.00-Z-0002-01A
1	Remove crank window in rear door	Do not remove crank window from rear door, but rather secure it in the uppermost position against falling down using a mounting wedge.	AR72.12-P-1910T
			*110589035900
2	Remove power window motor of rear door		AR72.29-P-1880T
3	Remove electric wiring harness (2) from power window (1)	Installation:  Replace tie straps (3).
4	Drill out blind rivets (4) or cut off	Remove rivet residue and chips from rear door, otherwise there is a risk of rusting.
5	Remove power window (1) from rear door
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
