Remove/install crank window in rear door - AR72.12-P-1910T

MODEL 211.0/2

Shown on left rear door, model 211.0

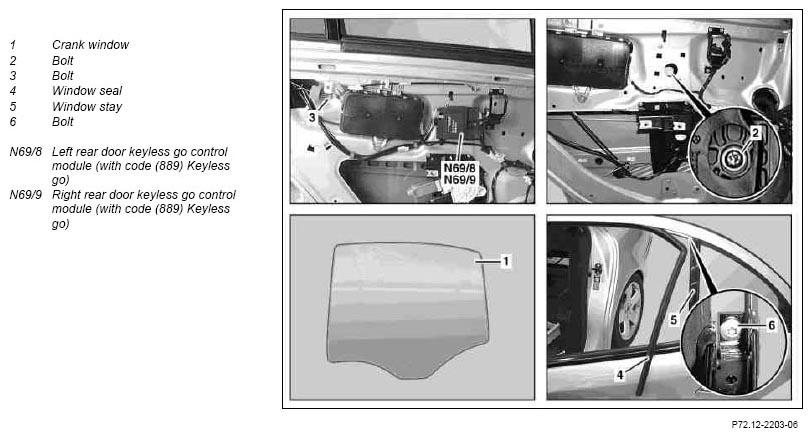

Fig 1: Identifying Rear Crank Window Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of injury  due to hands being crushed when window glass is not secure	Secure window to prevent it from falling down.	AS67.00-Z-0002-01A
1	Open crank window (1) approx. 50 mm
2	Remove door foil from rear door	Only remove door foil until access cover in inner door panel is accessible. with code (889) Keyless go: Remove door foil until the left rear door Keyless Go control unit (N69/8) or the right rear door Keyless Go control unit (N69/9) is accessible.	AR72.12-P-0105T
3.1	Unclip left rear door Keyless go control module (N69/8) or right rear door Keyless go control module (N69/9) from inner door panel and lay down to side	On vehicles with code (889) Keyless go
		Mounting wedge	*110589035900
4	Detach bolt (2).		*BA72.12-P-1009-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
5	Connect ground line to battery
	Notes on battery		AH54.10-P-0001-01A
6	Wind crank window fully down	By pressing power window switch in front door.
7	Unscrew bolt (3).		*BA72.12-P-1014-01A
8	Remove inner sealing rail from rear door		AR72.12-P-1013T
9	Remove outer sealing rail from rear door		AR72.12-P-1014T
10	Remove window sealing (4) from window separator bar (5)	Installation:  Use lubricant.
		Antifriction agent	*BR00.45-Z-1010-06A
11	Unscrew bolt (6)
12	Withdraw window separator bar (5) from rear door	To remove turn window stay (5) and carefully pull out of rear door to prevent damaging paint
13	Remove crank window (1) from rear door
14	Install in the reverse order
15	Normalize power window	See Operating Instructions
16	Perform function check

REAR DOOR

Number	Designation		Model 211
BA72.12-P-1009-01A	Bolt, power window to crank window	Nm	8
BA72.12-P-1014-01A	Bolt, corner window separator bar to inner door panel	Nm	7

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
