Remove/install power window motor in rear door - AR72.29-P-1880T

MODEL 211.0/2

Shown on left rear door

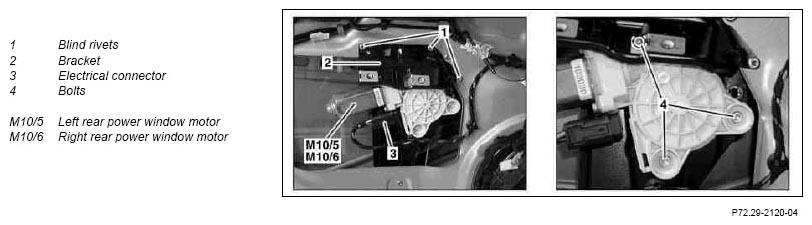

Fig 1: Identifying Rear Door Power Window Motor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove door foil from rear door	Only remove door foil until left rear power window motor (M10/5) or right rear power window motor (M10/6) is accessible.	AR72.12-P-0105T
2	Bore out or mill off blind rivet (1) and then remove bracket (2)	Remove rivet residue and chips from door, otherwise there is a risk of rusting.
3	Separate electrical connector connection (3)
4	Remove bolts (4)		*BA72.29-P-1002-01A
5	Press left rear power window motor (M10/5) or right rear power window motor (M10/6) off of inner door panel with mounting wedge and remove		*110589035900
		Installation:  Coat gears on left rear power window motor (M10/5) or right rear power window motor (M10/6) with Isoflex Topas L 32.
		Lock cylinder grease spray 50 ml	*BR00.45-Z-1012-06A
6	Install in the reverse order

ELECTRIC SYSTEM - SIDE DOORS

Number	Designation		Model 211
BA72.29-P-1002-01A	Bolt, rear door power window motor	Nm	4.5

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-06A	Lock cylinder grease spray 50 ml	A 002 989 06 51
