Remove/install fiber optic cable for the Media Oriented System Transport (MOST) - AR82.60-P-0001TJ
MODEL 211.0/2 up to 1.6.08 except CODE (809) Model year 2009 between audio gateway control unit and radio/COMAND
Shown on model 211.0 with code (527) COMAND APS (with navigation system)

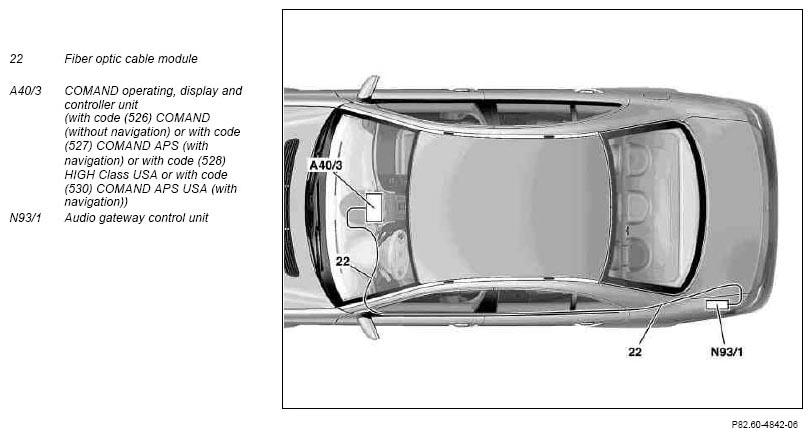

Fig 1: Identifying Fiber Optic Cable Module, COMAND Operating, Display And Controller Unit With Audio Gateway Control Unit

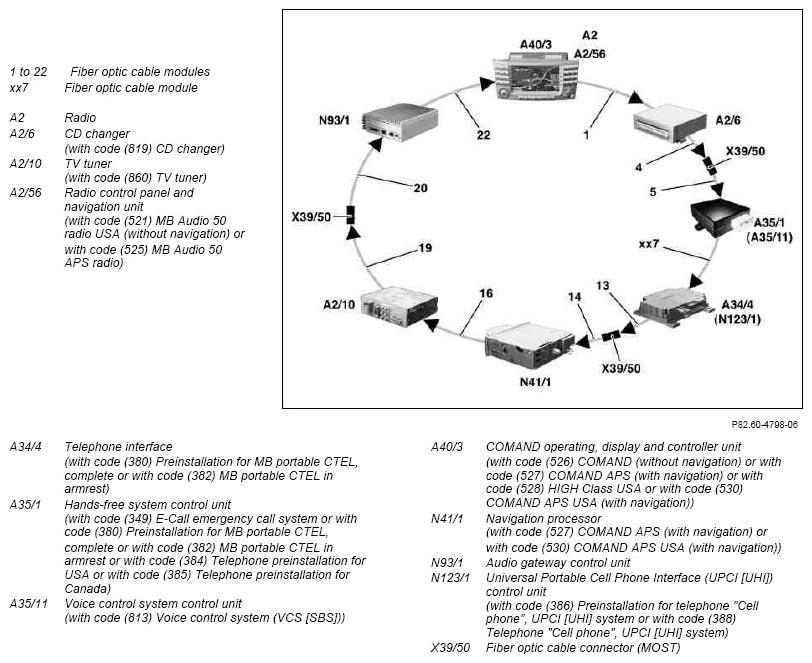

Ring sequence of the fiber optic cable for the Media Oriented System Transport (MOST), shown for maximum equipment
| Remove/install | |||
| Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST) | AH82.60-P-0001-06T | ||
| 1.1 | Remove radio (A2) or radio control panel and navigation unit (A2/56) | Vehicles with code (523) MB Audio 20 radio or with code (521) MB Audio 50 radio USA (without navigation) or code (525) MB Audio 50 APS radio |
AR82.60-P-7502T |
| 1.2 | Remove the COMAND operating, display and controller unit (A40/3) | Vehicles with code (526) COMAND (without navigation) or code (527) COMAND APS (with navigation). | AR82.85-P-1000T |
| 2 | Remove left front floor covering | AR68.20-P-2050T | |
| 3 | Remove cargo retainers in left rear legroom | ||
| 4 | Remove left rear door sill molding | ||
| 5 | Remove rear seat cushion | Model 211.0 without code (287) Through-loading feature | AR91.12-P-1020T |
| Model 211.0 with CODE (287) Through-loading feature | AR91.12-P-1020TA | ||
| Model 211.2 | AR91.12-P-1020TB | ||
| 6.1 | Remove side bolster and cover next to left rear seat backrest | Model 211.0 | |
| 6.2 | Remove side paneling on left side of rear compartment | Model 211.2 |
AR68.30-P-4780T |
| 7 | Fully open left front and left rear cable ducts | ||
| 8 | Remove fiber optic cable module for Media Oriented System Transport (MOST) |
AR82.60-P-0001-01TJ | |
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 9 | Install in the reverse order | ||
| 10 | Connect STAR DIAGNOSIS, read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 11 | Carry out start-up and function test |
