Remove/install fiber optic cable for the Media Oriented System Transport (MOST) - AR82.60-P-0001TH
MODEL 211.0/2 up to 1.6.08 except CODE (809) Model year 2009 with CODE (860) TV tuner between TV tuner and fiber optic cable connector (MOST)
Shown on model 211.0

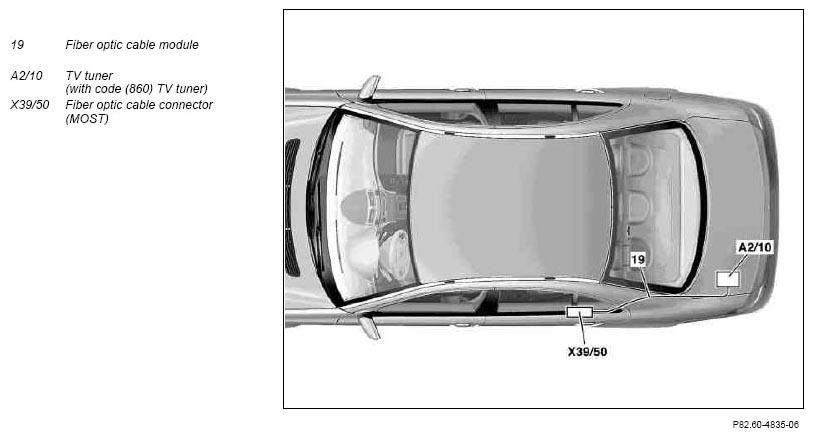

Fig 1: Identifying Fiber Optic Cable Module, TV Tuner And Fiber Optic Cable Connector (MOST) - Shown On Model 211.0

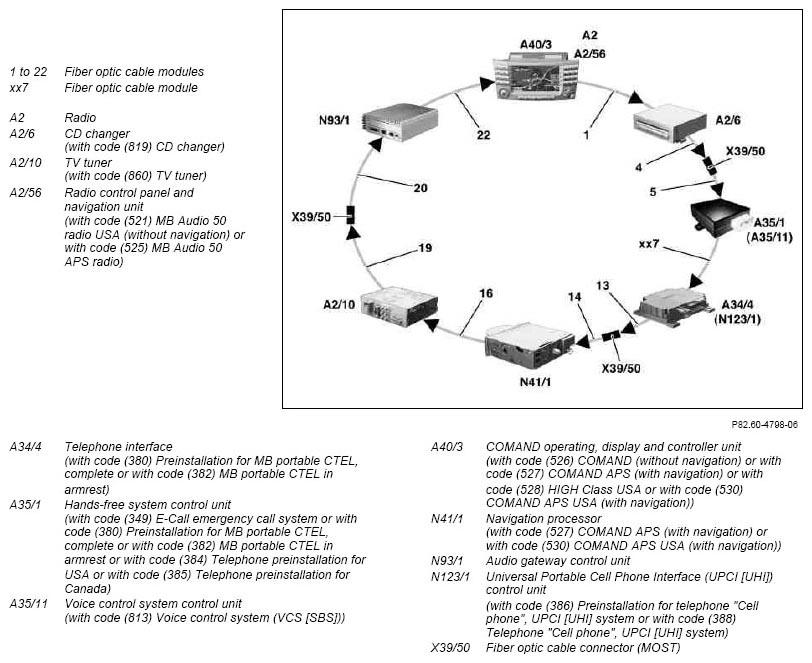

Ring sequence of the fiber optic cable for the Media Oriented System Transport (MOST), shown for maximum equipment
| Remove/install | |||
| Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST) | AH82.60-P-0001-06T | ||
| 1 | Remove cargo retainers in left rear legroom | ||
| 2 | Remove left rear door sill molding | ||
| 3 | Remove rear seat cushion | Model 211.0 without code (287) Through-loading feature | AR91.12-P-1020T |
| Model 211.0 with CODE (287) Through-loading feature | AR91.12-P-1020TA | ||
| Model 211.2 | AR91.12-P-1020TB | ||
| 4 | Remove side bolster and cover next to left rear seat backrest | Model 211.0 | |
| 5.1 | Remove side paneling on left side of rear compartment | Model 211.2 | AR68.30-P-4780T |
| 5.2 | Remove side paneling in left side of luggage compartment | Model 211.0 without code (287) Through-loading feature and without code (924) Bivalent natural gas drive | AR68.30-P-4800T |
| Model 211.0 with CODE (287) Through-loading feature | AR68.30-P-4800TA | ||
| Model 211.0 with code (924) Bivalent natural gas drive | AR68.30-P-4800TB | ||
| 6 | Fully open left rear cable duct | ||
| 7 | Remove fiber optic cable module for Media Oriented System Transport (MOST) |
AR82.60-P-0001-01TH | |
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 8 | Install in the reverse order | ||
| 9 | Connect STAR DIAGNOSIS, read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 10 | Carry out start-up and function test |
