Retrofit sound system - AZ82.62-P-0002TA

MODEL 211.2 with CODE (810) Sound system

AMG high-end sound system

Picture 1, shown on model 219

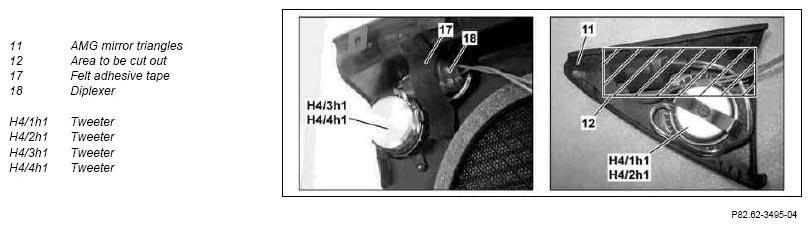

Fig 1: Identifying AMG Mirror Triangles, Area To Be Cut Out, Felt Adhesive Tape And Diplexer

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Picture 2

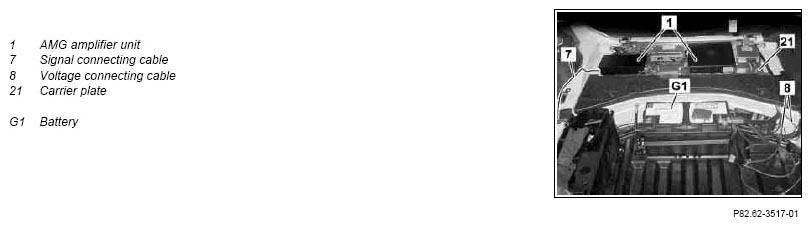

Fig 2: Identifying AMG Amplifier Unit, Signal Connecting Cable, Voltage Connecting Cable And Carrier Plate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
	Notes on avoiding damage to fiber optic cables during repair work	Model 219.3 with Media Oriented System Transport (MOST).	AH82.60-P-0001-05TX
		Leave speaker in original packaging as long as possible. Do not push in or damage speaker membranes. Pushed in or torn speakers are audible in the test.
		Remove series logo (Harman or Becker) from speaker grilles.
		If possible, use protective foils against soiling. Perform installation and removal in area of rear shelf and C-pillars with gloves.
1	Connect Star Diagnosis and read out fault memory, save if necessary
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Disconnect ground cable from battery
		Model 211.2	AR54.10-P-0003TA
3	Remove loudspeaker in dashboard
		Model 211.2	AR82.62-P-7833T
4	Remove front door speakers
		Model 211.2	AR82.62-P-7845T
5	Remove mirror triangles
6	Remove speakers in rear doors	Insert diplexers (18), tweeter H4/3h1 and H4/4h1, as shown in picture 1, into door trim and fix in place with felt adhesive tape (17).
		Model 211.2	AR82.62-P-7874T
7	Remove bass module speaker
		Model 211.2 with code (810) Sound system.	AR82.62-P-7839T
8	Remove speaker in headliner
		Model 211.2 with code (810) Sound system	AR82.62-P-7876T
9	Remove audio component center	Only vehicles up to code (808) Model year 2008.
		Model 211.2 up to 1.6.08 except code (809) Model year 2009	AR82.60-P-7605TA
10	Remove vehicle's own carrier plate behind rear bench seat	To do so, front section of cargo area floor must be removed. Refer to: ↓
		Remove front section of cargo area floor	AR68.20-P-4811T
	Install
11	Install AMG speaker in instrument panel
		Model 211.2	AR82.62-P-7833T
12	Install AMG mirror triangles	To ensure that original foam material can be used in AMG mirror triangles (11), it must be cut out in area of connector (see picture 1). To do so, place connector on foam material and mark area to be cut out (12).
13	Install AMG speakers in front doors
		Model 211.2	AR82.62-P-7845T
14	Install AMG speakers in rear doors	Insert diplexers (18), tweeter H4/3h1 and H4/4h1, as shown in picture 1, into door trim and fix in place with felt adhesive tape (17).
		Model 211.2	AR82.62-P-7874T
15	Install AMG speaker bass box	Only reinstall panels following system check at end of conversion work.
		Model 211.2 with code (810) Sound system.	AR82.62-P-7839T
16	Install AMG speaker in headliner	Only reinstall covers following system test at end of conversion work.
		Model 211.2 with code (810) Sound system	AR82.62-P-7876T
17	Install AMG amplifier unit (1)	If necessary, existing control units are to be transferred from vehicle's own carrier plate to carrier plate (21) with AMG amplifier unit (1). Refer to: ↓	AZ82.62-P-0002-01TA
		Voice control system control unit Model 211.2 up to 1.6.08 except code (809) Model year 2009 with code (813) Voice control system (VCS [SBS])	AR82.70-P-0003TA
		Compensator control unit Model 211.2 up to 1.6.08 except code (809) Model year 2009 with code (380) Complete preinstallation for MB telephone "Cell phone" with code (382) MB telephone "Cell phone" in armrest	AR82.70-P-0030TA
		Vehicle interface (cell phone) Model 211.2 up to 1.6.08 except code (809) Model year 2009 with code (380) Complete preinstallation for MB telephone "Cell phone" with code (382) MB telephone "Cell phone" in armrest	AR82.70-P-8920TA
18	Perform system test	To do so, reconnect battery. All newly installed speakers must undergo a function or audio test before remaining parts are installed.
19	Install in the reverse sequence	Operation step 10, 9, 8, 7
