Remove/install loudspeakers in front doors - AR82.62-P-7845T

MODEL 211.0/2/6

Shown on left front door

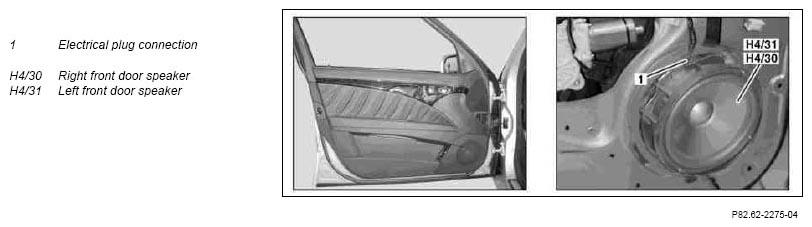

Fig 1: Identifying Left/Right Front Door Speaker With Electrical Plug Connection - Shown On Left Front Door

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove door foil from front door	Work loose door foil only until the right front door speaker (H4/30) or left front door speaker (H4/31) is exposed.	AR72.10-P-1010T
2	Disconnect electrical connector (1).
3	Rotate and remove right front door speaker (H4/30) or left front door speaker (H4/31)
4	Install in the reverse order
