Retrofit rear-entertainment with two screens - AZ82.60-P-0015T

MODEL 211.0/2 except CODE (861) TV rear screen

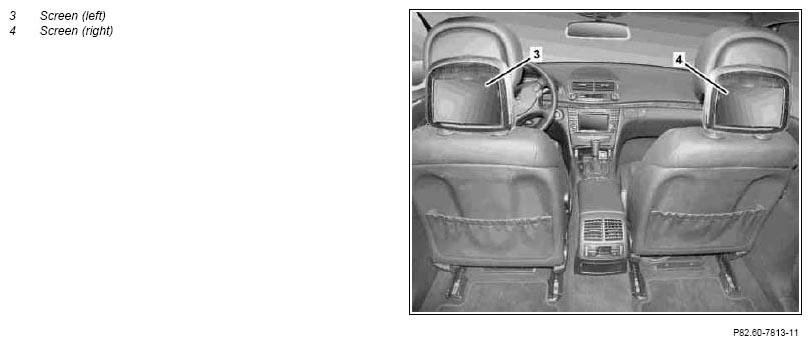

Fig 1: View Of Rear-Entertainment Screens

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Loosen center console in rear area
2	Loosen front seats		AR91.10-P-1000T
3.1	Loosen left and right head restraint drive	On vehicles with  code (275) Memory package (driver seat, steering column, mirrors) and with  code (242) Electrically adjustable front passenger seat with memory Do not completely remove head restraint or head restraint drive, simply loosen them.
		up to  30.6.04	AR91.29-P-1432T
		As of  1.7.04	AR91.29-P-1432TA
3.2	Move left and right front seat head restraint all the way to the top	On vehicles without  code (275) Memory package (driver seat, steering column, mirror) and without  code (242) Electrically adjustable front passenger seat with memory
4	Loosen left front dynamic multicontour seat control unit	On vehicles with  code (433) Left dynamic seat, incl. multicontour seat In doing so, do not disconnect pneumatic lines.	AR91.25-P-1800T
	Install
5	Retrofit bracket of screens (3, 4)		AZ82.60-P-0015-04T
			*BA82.60-P-1001-01A
6	Retrofit rear entertainment wiring harness	Make sure that the wiring harnesses are not damaged by chafing, pinching or crushing, as otherwise the corresponding wiring harness may have to be replaced.
		Vehicles with  code (275) Memory package (driver seat, steering column, mirrors)	AZ82.60-P-0015-02T
7	Retrofit rear entertainment control unit		AZ82.60-P-0015-01T
8	Retrofit screens (3, 4)		AZ82.60-P-0015-03T
9	Install remaining parts
10	Program rear entertainment infrared channel		AZ82.60-P-0015-05GZ
11	Program rear entertainment regional code		AZ82.60-P-0015-06GZ
12	Connect STAR DIAGNOSIS
13	Code head restraint height via DAS	On vehicles with  code (275) Memory package (driver seat, steering column, mirrors) The head restraint height must be coded to prevent a collision of the head restraint with the screens (3, 4).
14	Close STAR DIAGNOSIS
15	Perform function test	See rear entertainment operating instructions.

REAR ENTERTAINMENT UNIT

Number	Designation		Model 164, 166, 204, 211, 212, 218, 219, 221, 251
BA82.60-P-1001-01A	Screw/bolt to rear entertainment unit bracket	Nm	19

PARTS ORDERING NOTES

Part no.	Designation	Quantity
see Odus	Parts kit for rear entertainment with two screens	1
