Retrofit rear entertainment wiring harness - AZ82.60-P-0015-02T

Routing diagram

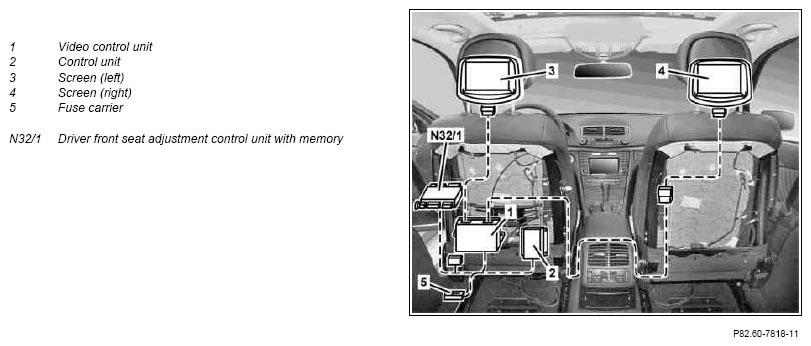

Fig 1: Rear Entertainment Wiring Harness Routing Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connection scheme

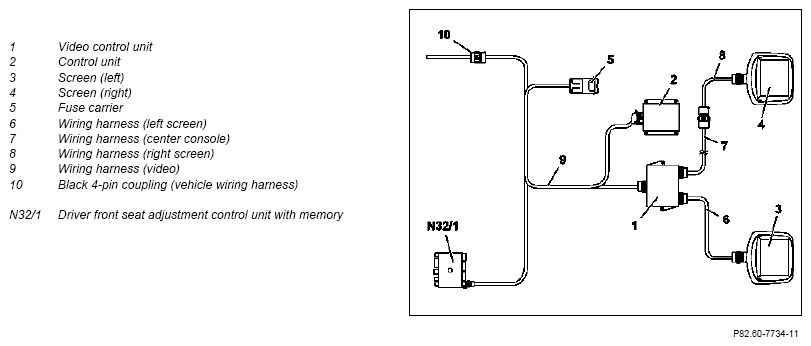

Fig 2: Rear Entertainment Wiring Harness Connection Scheme

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Ensure that the wiring harnesses are not damaged by chafing or being trapped otherwise the appropriate wiring harness must be replaced.

Route wiring harness (6) from previously created opening in backrest to video control unit (1).
The video control unit (1) is only placed in the seat and is fastened at a later point.
Connect wiring harness (6) to video control unit (1).
The white 12-pin coupling (23) is connected at a later point. The connections at video control unit (1) are coded and cannot be swapped.

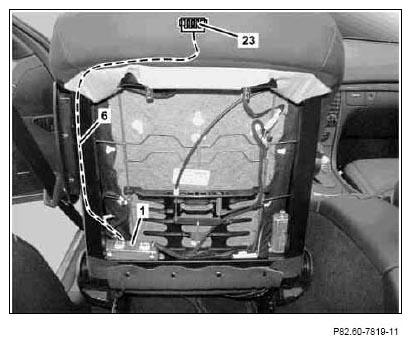

Fig 3: Identifying Video Control Unit Wiring Harness & White 12-Pin Coupling
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fasten wiring harness (6) at seat frame using cable ties.
Strap down excess length of line from wiring harness (6) using cable ties.
Route wiring harness (9) from control unit (2) to driver-side front seat adjustment control unit with memory (N32/1).
The control unit (2) is only placed in the seat and is installed at a later point.
Connect wiring harness (9) to wiring harness control unit (2) and to video control unit (1).
Fasten wiring harness (9) at seat frame using cable ties.

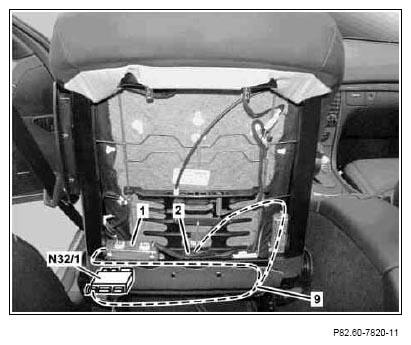

Fig 4: Wiring Harness Routing Diagram From Control Unit To Driver-Side Front Seat Adjustment Control Unit With Memory
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Detach black 4-pin coupling (10) of vehicle wiring harness from driver-side front seat adjustment control unit with memory (N32/1) and connect with black 4-pin connector (24) of wiring harness (9).
Attach black 4-pin coupling of wiring harness (9) at driver-side front seat adjustment control unit with memory (N32/1) at outer left slot.
Fasten wiring harness (9) at seat frame using cable ties.

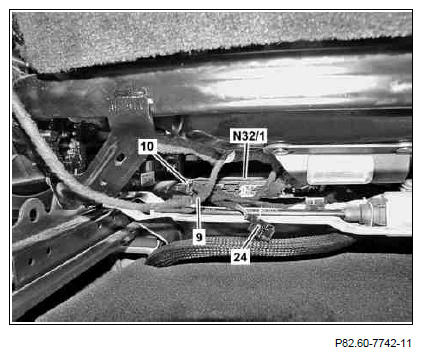

Fig 5: Identifying Black 4-Pin Connector Of Wiring Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Connect wiring harness (7) to video control unit (1) and route to previously created cutout in backrest on passenger side.
To ensure a seat adjustment in the longitudinal direction, the wiring harness (7) below the seat must be routed with a loop. Wiring harness (7) is routed below floor coverings. When routing, lift the center console and tilt the seats.
Connect wiring harness (7) with wiring harness (8) and fasten wiring harness (8) with cable ties.
Fix wiring harness (7) in place at vehicle wiring harness below left and right seat using cable ties.

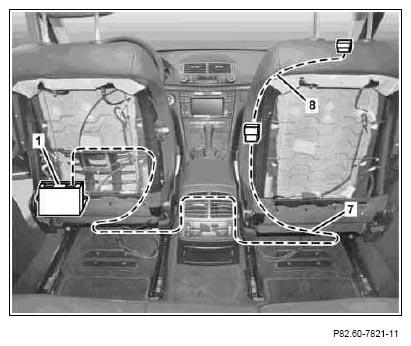

Fig 6: Video Control Unit Wiring Harness Routing Diagram
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
