Program rear entertainment regional code - AZ82.60-P-0015-06GZ

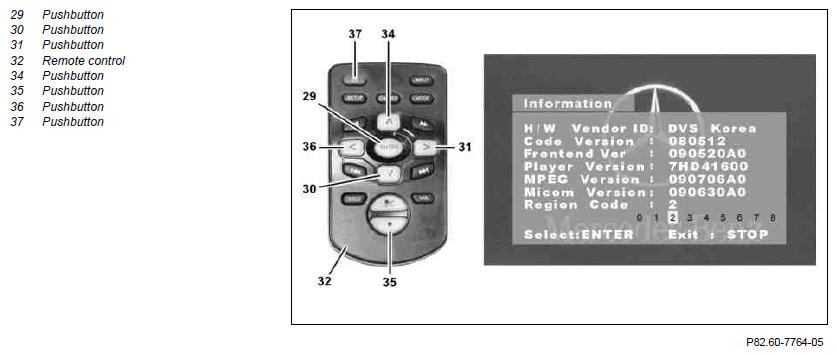

Fig 1: Identifying Rear Entertainment Regional Code

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

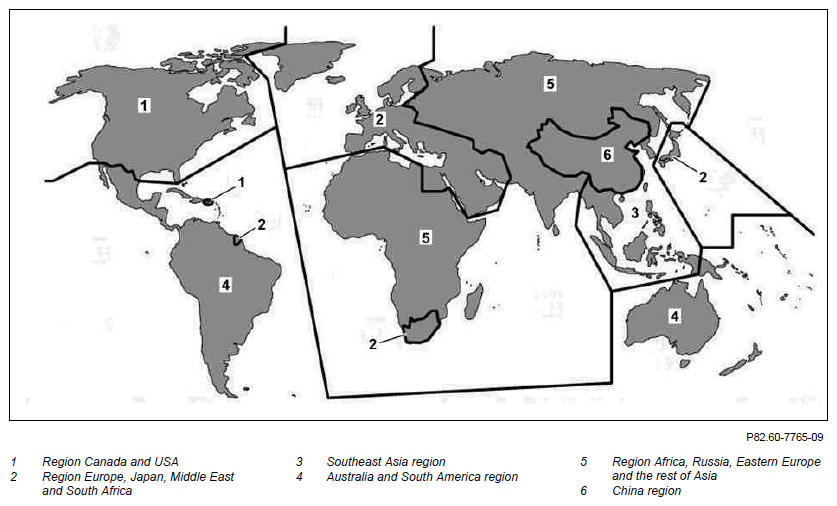

Fig 2: Rear Entertainment Regional Code Chart

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Both screens are already switched on. No DVD may be inserted.

The region code must be programmed on the two screens.

1. Press the following button combinations on the remote control (32):
   • Button (34)
   • Button (30)
   • Button (34)
   • Button (29)

     Button (29) used for confirming an entry.

2. Select the corresponding regional code with button (31) or button (36).
3. Press button (29) to confirm entry.
4. Press button (35) to exit menu.
5. Switch off rear entertainment by pressing button (37).
