Remove/install and disassemble rear shelf - AR68.30-P-4580TB

MODEL 211.0 with CODE (540a) Electric roller blind for rear window except CODE (287a) Through-loading feature

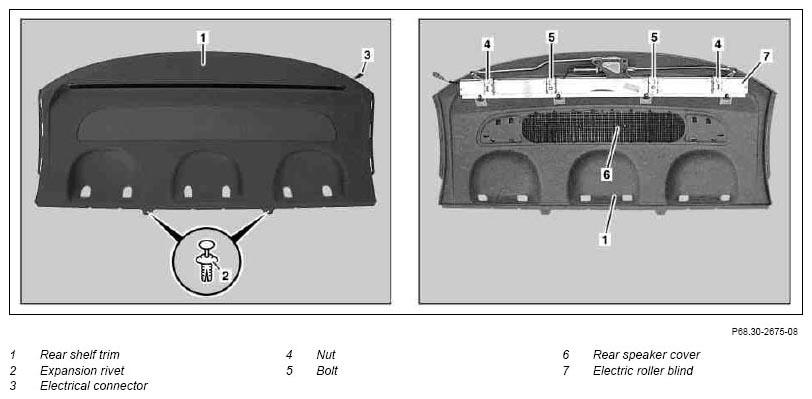

Fig 1: Identifying Rear Shelf Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

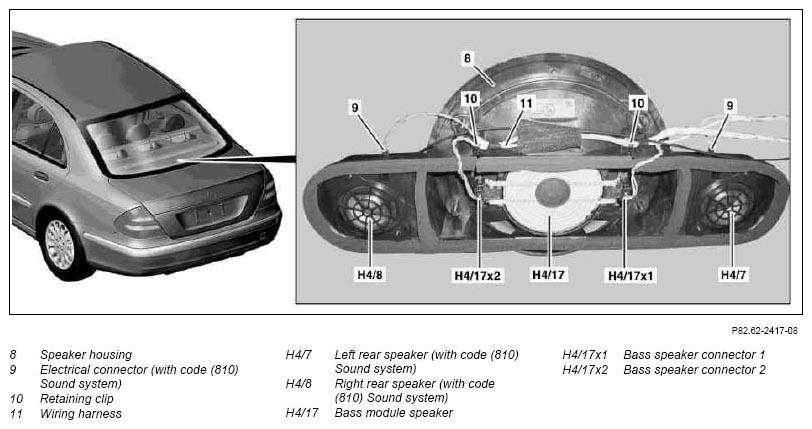

Fig 2: Identifying Rear Shelf Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove rear seat backrest		AR91.12-P-1620T
2	Remove rear headrests		AR91.16-P-1770T
3	Remove trim at both C-pillars	Do not detach belt end fitting.	AR68.30-P-4490T
4	Remove expansion rivets (2)
5	Unscrew nuts (4) and bolts (5)	Accessible through trunk.
6	Lift rear shelf trim (1) and unclip rear speaker cover (6)
7	Disconnect woofer connector 1 (H4/17x1) and woofer connector 2 (H4/17x2) from woofer (H4/17)
8.1	Disconnect electrical connectors (9) from left rear speaker (H4/7) and right rear speaker (H4/8)	On vehicles with code (810) Sound system
9	Take off retaining clips (10) and remove wiring harness (11) from speaker housing (8)
10	Turn speaker housing (8) counterclockwise until it unlocks
11	Lift rear shelf trim (1), pull toward front together with speaker housing (8) and remove speaker housing (8)	Pay attention to insulating mat below rear shelf trim (1)
12	Disconnect electrical connector (3) and remove rear shelf trim (1)
13.1	Remove electric roller blind (7)	Only when replacing rear shelf trim (1)	AR68.50-P-4600T
14	Install in the reverse order
