Removing rear head restraint - AR91.16-P-1770T
MODEL 211.0 except CODE (287a) Through-loading feature
| Remove | ||

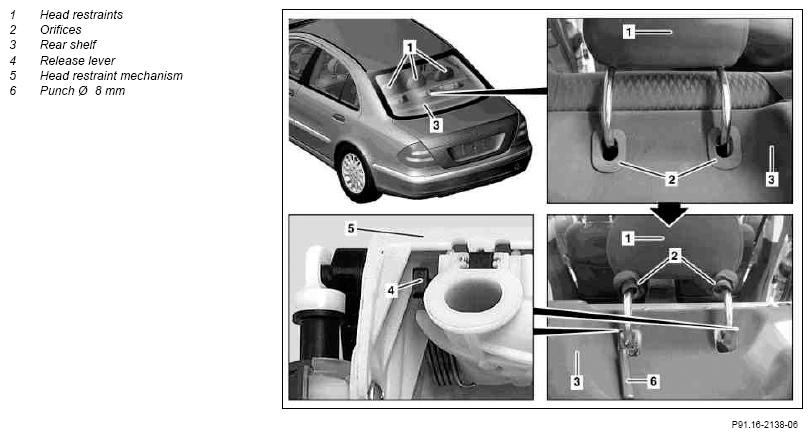

| 1 | Put up relevant head restraint (1) manually | |
| 2 | Unclip orifices (2) from rear shelf (3) | |
| 3 | Operate release levers (4) at both sides with punch Ø 8 mm (6) | |
| 4 | Pull head restraint (1) out of head restraint mechanism (5) | |
| Install | ||
| 5 | Insert head restraint (1) into head restraint mechanism (5) until head restraint (1) engages | |
| 6 | Install orifices(2) | |
| 7 | Perform function check of head restraint tilting |
