Remove/install rear seat backrest - AR91.12-P-1620T

MODEL 211.0 except CODE (287a) Through-loading feature

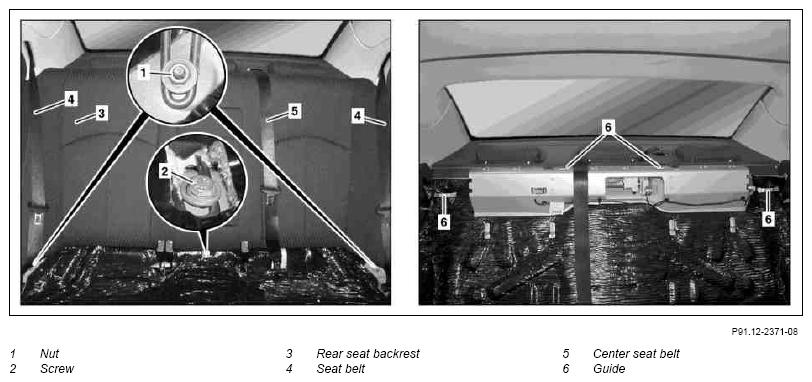

Fig 1: Identifying Rear Seat Backrest Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

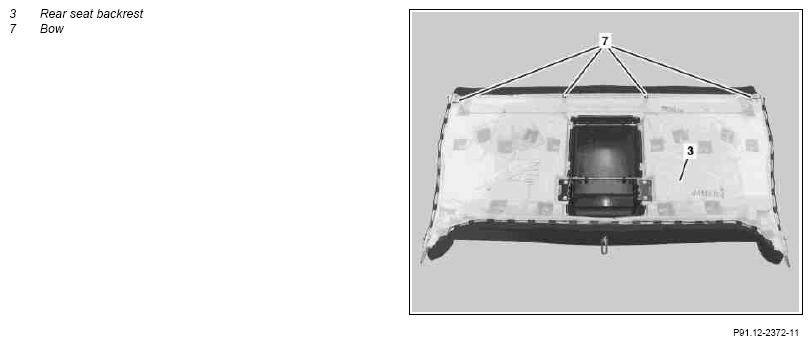

Fig 2: Identifying Rear Seat Backrest Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove rear seat cushion		AR91.12-P-1020T
2	Remove nuts (1) on both sides
3	Remove screw (2)
4	Lift rear seat backrest (3)
5	Guide seat belt (4) on both sides underneath the rear seat backrest (3)
6	Pull out middle seat belt (5) and lock into place
7	Slide rear seat backrest (3) upward and remove from the brackets (6)	Installation:  Ensure that bow (7) is seated safely in guides (6).
8	Remove rear seat backrest (3) from the vehicle to the side	Carefully remove rear seat backrest (3) from the vehicle to prevent damaging the rear door and the entrance area.
9	Install in the reverse order
