Retrofit ski bag with refrigerator box preinstallation - AN91.22-P-0002SC

MODEL 216.3## 1#

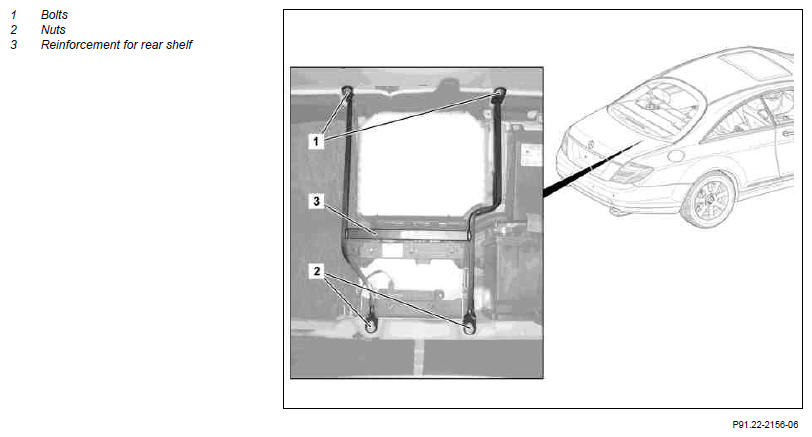

Fig 1: Identifying Rear Shelf Reinforcement With Bolts And Nuts

Courtesy of MERCEDES-BENZ USA

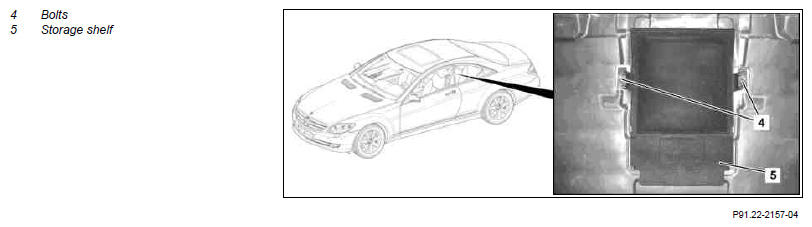

Fig 2: Identifying Storage Shelf And Bolts

Courtesy of MERCEDES-BENZ USA

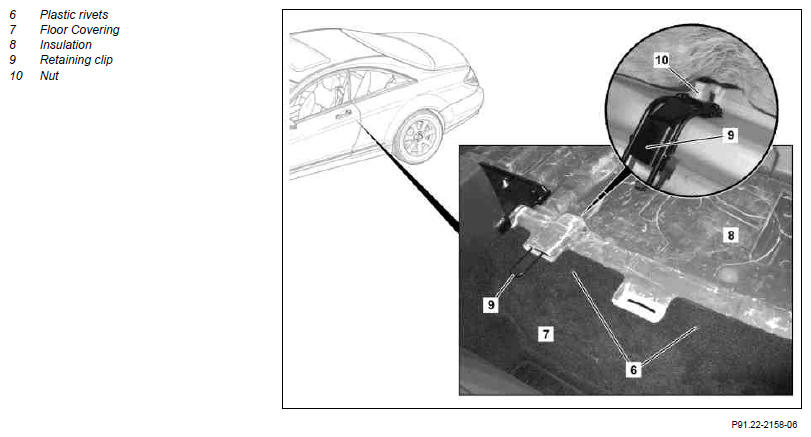

Fig 3: Identifying Plastic Rivets, Floor Covering, Insulation, Retaining Clip And Nut

Courtesy of MERCEDES-BENZ USA

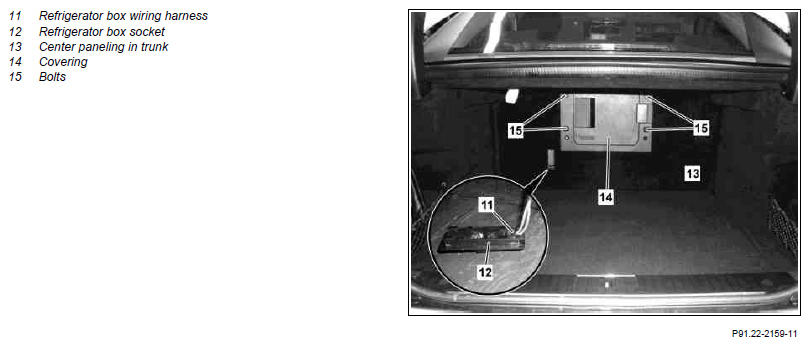

Fig 4: Identifying Refrigerator Box Wiring Harness, Refrigerator Box Socket, Center Paneling In Trunk, Covering And Bolts

Courtesy of MERCEDES-BENZ USA

	The general retrofitting of the ski bag with refrigerator box preinstallation is described. But the ski bag and refrigerator box cannot  be used at the same time
	Removing
1	Remove all paneling in trunk
	Remove paneling in trunk		AR68.30-P-4600SX
2	Unscrew bolts (1) from rear shelf reinforcement (3)	Bolt/nut, rear shelf reinforcement to body	*BA64.10-P-1001-01A
3	Unscrew bolts (2) of rear shelf reinforcement (3) and remove rear shelf reinforcement (3)	Rear shelf reinforcement (3) will be replaced by a new part.
		Bolt/nut, rear shelf reinforcement to body	*BA64.10-P-1001-01A
4	Remove rear seat cushion	Remove both rear seat cushions.
	Remove/install rear seat cushion		AR91.12-P-1020SC
5	Remove rear seat backrest
	Remove/install rear seat backrest		AR91.12-P-1620SC
6	Unscrew bolts (4) and remove stowage box/ tray (5)	Stowage box/tray (5) will be replaced by a new part.
7	Remove plastic rivets (6)
8	Lift floor covering (7) and insulation (8)	Only lift floor covering (7) and insulation (8) until attachment point for retaining bracket (9) is accessible. Ensure that neither floor covering (7) nor insulation (8) is damaged.
	Install
9	Install retaining bracket (9) at attachment point and tighten nut (10)
10	Lay out insulation (8), floor covering (7) and insert plastic rivets (6)
11	Retrofit ski bag housing		AN91.22-P-0001-03SC
12	Retrofit refrigerator box wiring harness		AN91.22-P-0002-01SC
13	Install remaining parts onto vehicle	Steps 5, 4 and 1. Center trunk paneling (13) will be replaced by a new part.
14	Connect branch-off line of refrigerator box wiring harness (11) to refrigerator box socket (12) and insert and lock refrigerator box socket (12) in center trunk paneling (13)	For locking/unlocking refrigerator box socket (12), lock must be pushed from front side into corresponding position by means of a screwdriver.
15	Position covering (14) at center trunk paneling (13) and tighten bolts (15)
16.1	Insert refrigerator box in covering (14), tighten knurled screws and connect refrigerator box to refrigerator box socket (12)	For desired use of refrigerator box.
16.2	Clip ski bag into covering (14) and close lid	For desired use of ski bag.
17	Enter special equipment in the vehicle data card and in the vehicle's online data card	Ski bag (through-loading feature), code 282, Cooling compartment in center rear backrest, code 308.

REAR WALL, REAR SHELF

Number	Designation		Model 216
BA64.10-P-1001-01A	Bolt/nut, rear shelf reinforcement to body	Nm	23

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 99	Ski bag/refrigerator box parts kit	1
