Retrofit refrigerator box wiring harness - AN91.22-P-0002-01SC

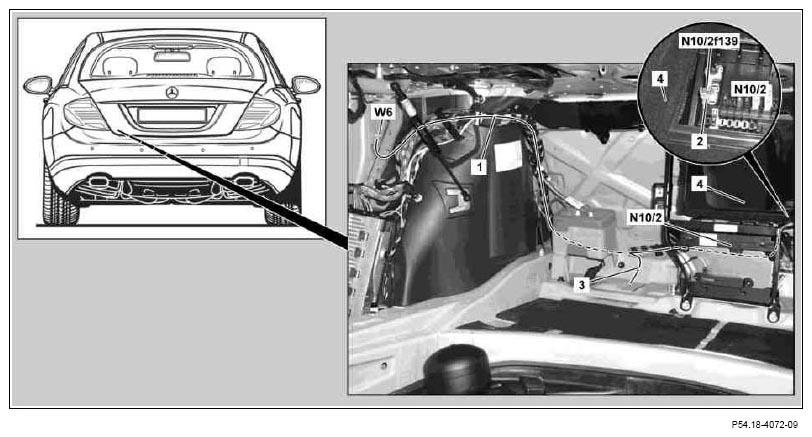

- Connect ground line from refrigerator box wiring harness (1) to ground (left wheelhouse in luggage compartment) (W6).
- Route refrigerator box wiring harness (1) along main wiring harness in direction of rear SAM control unit with fuse and relay module (N10/2).
The refrigerator box wiring harness (1) must be routed and fixed to the main wiring harness in such a way as to prevent vibrations and damages.
- Unclip and remove access cover from rear SAM control unit with fuse and relay module (N10/2) at stowage box/tray (4) with through-loading function.
- Install fuse carrier (2) from refrigerator box wiring harness (1) on side of rear SAM control unit with fuse and relay module (N10/2) in slot 139.
- Branch-off line (3) from refrigerator box wiring harness (1) will be connected to refrigerator box socket at a later point.
- Install access cover from rear SAM control unit with fuse and relay module (N10/2) at stowage box/tray (4) with through-loading function.
