Retrofit ski bag housing - AN91.22-P-0001-03SC

REAR WALL, REAR SHELF

Number	Designation		Model 216
BA64.10-P-1001-01A	Bolt/nut, rear shelf reinforcement to body	Nm	23

Install rear shelf reinforcement (3), tighten bolts (1) and nuts (2).
Note torque of bolts (1) and nuts (2).
Fit drip protection (6) to strut of rear shelf reinforcement (3).
Ensure correct seating of drip protection (6). Catches (arrow) of drip protection (6) must close tightly around struts of rear shelf reinforcement (3).

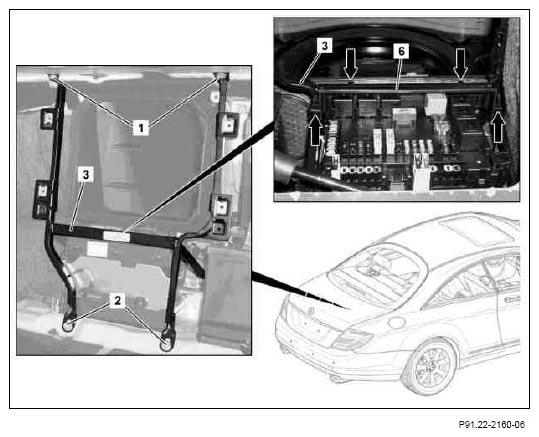

Fig 1: Identifying Rear Shelf Reinforcement, Bolts And Nuts
Courtesy of MERCEDES-BENZ USA
Install stowage box/tray (5) with through-loading function and tighten bolts (4).
Flap of stowage box/tray (5) with through-loading function can be opened and closed through operation of handle (7).

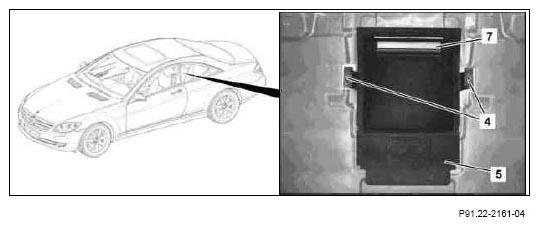

Fig 2: Identifying Stowage Box/Tray And Bolts
