Remove/install radiator paneling - AR88.40-P-4001V

MODEL 171.4

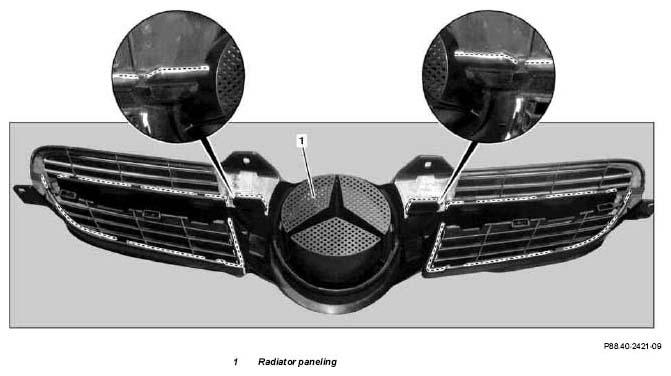

Fig 1: Identifying Radiator Paneling

Courtesy of MERCEDES-BENZ USA

Illustrated on removed radiator paneling

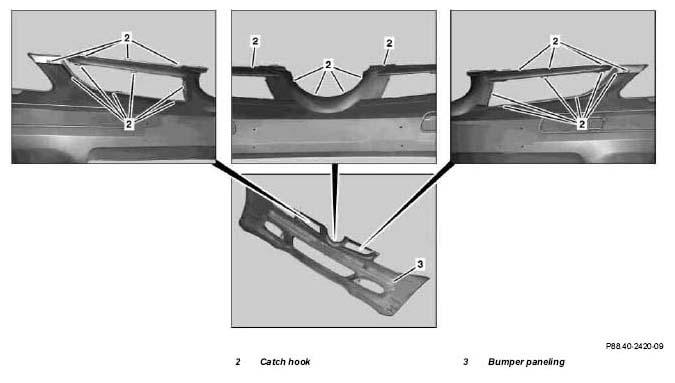

Fig 2: Identifying Radiator Paneling And Catch Hook

Courtesy of MERCEDES-BENZ USA

Illustrated on removed radiator paneling and disassembled bumper

	Remove
1	Remove front bumper		AR88.20-P-2000V
2	Remove Mercedes star		AR88.40-P-4050V
3	Saw through radiator paneling (1) along cutting lines	Saw carefully, otherwise bumper paneling (3) can be damaged
		Multicutter	*WH58.30-Z-1003-20A
		Saw blade, dia. 63 mm (pack of 2)	*WH58.30-Z-1005-34A
		Screw (only required for multicutter)	*WH58.30-Z-1006-34A
4	Unclip radiator paneling (1) on catch hooks (2) from bumper paneling (3) and remove.		Figure
	Install
5	Clip new radiator paneling (1) to bumper paneling (3)	Ensure that catch hooks (2) are seated properly in radiator paneling (1)
6	Install Mercedes star		AR88.40-P-4050V
7	Install front bumper		AR88.20-P-2000V

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
