Remove/install three-pointed star - AR88.40-P-4050V

MODEL 171.4

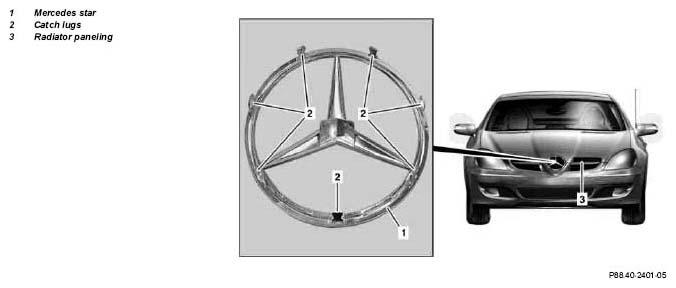

Fig 1: Identifying Three-Pointed Star Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open engine hood		AR88.40-P-1000V
2	Unclip Mercedes star (1) on catch lugs (2) from radiator paneling (3) with long wedge and remove	Unclip Mercedes star (1) carefully, danger of breaking catch lugs (2).
			Fig 2
3	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
