Removing and installing complete rear axle - AR35.10-P-0010V
MODEL 171.442 /454 /456 /473

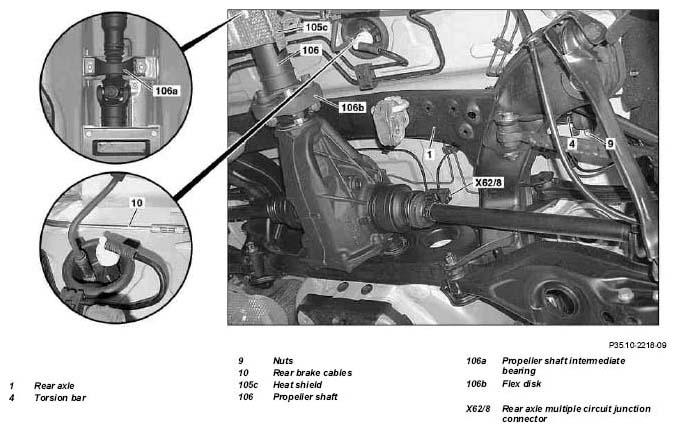

Shown on model 171.442

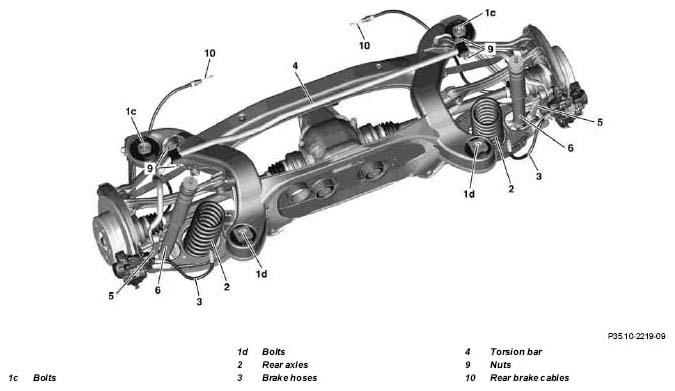

Shown on model 171.442
MODIFICATION NOTES
| 2.5.05 | Self-locking bolt, front rear axle carrier rubber mount to frame floor | Model 171 | *BA35.10-P-1001-01A |
| Self-locking bolt, rear axle carrier rear rubber mount to frame floor | Model 171 | *BA35.10-P-1002-01A | |
| 17.10.05 | Repair information on the threaded connection of the rear axle carrier rubber mount to the frame floor assembly added |
CAUTION:
If this is not observed then the faulty bolt preload force will cause transverse forces to be applied to the bolt, which may cause the bolt to fracture. |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | - | |
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | - | |
|
CAUTION:
The thread in the frame floor assembly must be recut and blown out, as adhesive residue in the thread will prevent the bolt reaching the required preload force, despite having reached the specified torque and specified angle of rotation.
If this is not observed then the faulty bolt preload force will cause transverse forces to be applied to the bolt, which may cause the bolt to fracture. |
|||
| Notes on self-locking nuts and bolts | - | ||
| Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition. | |||
| 1 | Detach top of damper from vehicle | AR32.25-P-0110V | |
| 2 | Raise vehicle with lifting platform | AR00.60-P-1000V | |
| 3 | Remove rear wheels. | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050V | ||
| 4 | Remove complete exhaust system | Engine 271 | AR49.10-P-7000VK |
| Engine 272 | AR49.10-P-7000VA | ||
| Engine 113 | AR49.10-P-7000VT | ||
| 5 | Remove heat shield (105c) | ||
| 6 | Mark installation position of propeller shaft center support bearing (106a) relative to frame floor assembly | ||
| 7 | Detach propeller shaft center support bearing (106a) from frame floor assembly. | ||
| *BA41.40-P-1001-01A | |||
| 8 | Detach propeller shaft (106) from rear axle center assembly | ||
| AR41.10-P-0050-04V | |||
| *BA41.10-P-1002-01A | |||
| 9 | Secure vehicle on lifting platform | ||
| 10 | Unhook rear brake cable (10) on cable slack adjuster and unclip from support | Fig 5 | |
| 11 | Detach connector of left and right rear RPM sensor at rear axle electrical distributor connector (X62/8) and unclip from brackets | ||
| 12 | Unscrew nuts (9) and remove stabilizer bar (4) from frame floor assembly | *BA32.20-P-1007-04C | |
| Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under load | Use only approved tensioning devices; shield off hazard area if necessary. Inspect special tools for damage and proper operation (visual inspection). Wear protective gloves. |
- | |
| 13 | Remove rear springs (2) | AR32.20-P-0230V | |
| 14 | Unscrew rear brake hoses (3) from brake lines | ||
| *BA42.10-P-1001-04A | |||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on installing brake hoses | AH42.10-P-9406-01A | ||
| Fig 4 | |||
| 15 | AR42.00-P-0100-01A | ||
| Fig 3 | |||
| 16 | Support rear axle (1) and secure to prevent it from falling down | *WE58.40-Z-1030-11A | |
| *WE58.40-Z-1018-11A | |||
| 17 | Remove bolts (1c, 1d) of rear axle suspension | ||
| *BA35.10-P-1001-01A | |||
| *BA35.10-P-1002-01A | |||
| 18 | Lower the rear axle (1) | ||
| 19 | Install in the reverse order | ||
| 20 | Bleed brake system | AR42.10-P-0010V | |
| 21 | Adjust parking brake | AR42.20-P-0540V | |
| Checking | |||
| 22 | Check toe-in at the rear axle and adjust if necessary | AR40.20-P-0200V | |
| 23 | Check oil level in rear axle center assembly | AR35.31-P-0520-03V | |
| 24 | Check headlamp adjustment | ||
| Check and correct headlamp setting | AP82.10-P-8260V |
REAR AXLE STABILIZER BAR
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA32.20-P-1007-04C | Self-locking nut, torsion bar rubber mount to frame floor | Nm | 23 |
REAR AXLE CARRIER
| Number | Designation | Model 171 | |||
|---|---|---|---|---|---|
| BA35.10-P-1001-01A | Self-locking bolt, front rear axle carrier rubber mount to frame floor | Nm | - | ||
| with bolt | Stage 1 | Nm | - | ||
| Flange Ø 24mm | Stage 2 | ∠° | - | ||
| with bolt | Stage 1 | Nm | 60 | ||
| Flange Ø 26mm | Stage 2 | ∠° | 90 | ||
| BA35.10-P-1002-01A | Self-locking bolt, rear axle carrier rear rubber mount to frame floor | Nm | - | ||
| with bolt | Stage 1 | Nm | - | ||
| Flange Ø 24mm | Stage 2 | ∠° | - | ||
| with bolt | Stage 1 | Nm | 60 | ||
| Flange Ø 26mm | Stage 2 | ∠° | 90 | ||
DRIVESHAFT
| Number | Designation | Model 171 | ||
|---|---|---|---|---|
| BA41.10-P-1002-01A | Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential. | M10 | Nm | 40 |
| M12 | Nm | 60 | ||
PROPELLER SHAFT INTERMEDIATE BEARING
| Number | Designation | Model 171 | ||
|---|---|---|---|---|
| BA41.40-P-1001-01A | Bolt, propeller shaft intermediate bearing to frame floor assembly | Self-tapping screw | Nm | 25 |
| Bolt with washer | Nm | 30 | ||
| - | - | - | ||
| - | - | - | ||
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA42.10-P-1001-04A | Brake pipe to brake hose | Nm | 16 |
WORKSHOP EQUIPMENT
| WE58.40-Z-1018-11A | Transmission platform |
| WE58.40-Z-1030-11A | Transmission jack |
