Inspect cylinders for leaks - AR01.00-P-1300HA
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 111, 271, 604, 605, 606

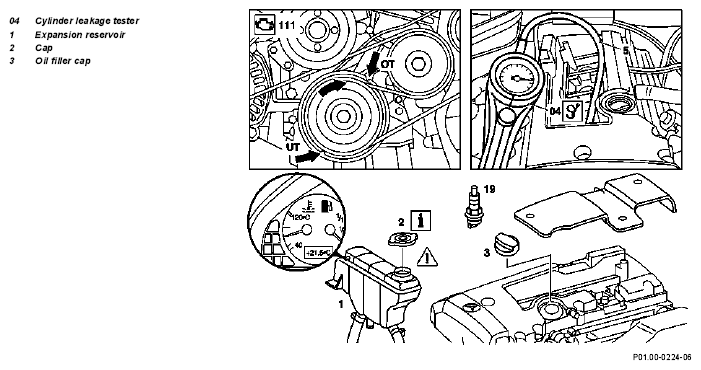

Shown on engine 111
| Remove/install | |||
| On engine 604 to 606 the pressure loss can be checked through bore for injection nozzle or glow plug. | |||
| 1 | Warm up engine to normal operating temperature (approx. 80°C) and switch off engine | ||
| 2 | Open engine hood | ||
| Risk of injury
to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 3 | Unscrew the cap (2) on the expansion reservoir or on radiator | ||
| 4.1 | Remove spark plugs | ||
| Replace spark plugs | Engines 111.920 /921 /940 /941 /942 /943 /944 /945 /946 /947 /952 /956 /957 /958 /960 /961 /970 /973 /974 /975 /977 /982 /983 | AP15.10-P-1580CA | |
| Engine 111.951/ 955/ 981 | AP15.10-P-1580PR | ||
| Engines 271.921/ 940/ 941/ 942/ 946/ 948/ 955/ 956 | AP15.10-P-1580P | ||
| Engine 271.950 | AP15.10-P-1580CW | ||
| Engine 271.944 | AP15.10-P-1580V | ||
| 4.2 | Remove injection nozzles | Engines 604, 605, 606, when testing injection nozzle through bore (A) | |
| Engine 605.911/ 962 | |||
| Engine 604, 605 except 605.911 /962, 606 | AR07.03-P-683CH | ||
| 4.3 | Remove glow plugs | Engines 604, 605, 606, when testing glow plug through bore (B) | |
| Engine 605.911 | |||
| Engine 606.910 | |||
| Engines 604, 605 except 605.911, 606 except 606.910 | AR15.20-P-4111H | ||

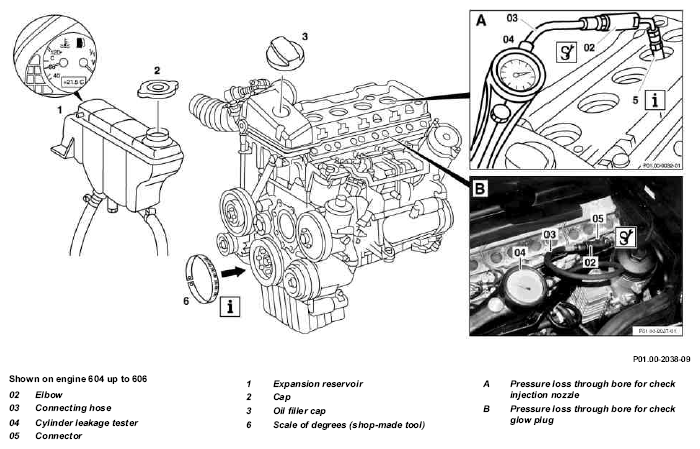

| 5 | Fix scale of degrees (6) at vibration damper. | Engine 604, 605, 606 | |
| Scale of degrees for vibration damper | WF58.50-P-0330-03A | ||
| 6 | Position piston for cylinder to be tested at ignition TDC | Engine 604 top dead center cylinder 1 and 4, 180° cylinder 2 and 3 Engine 605 Top dead center of cylinder 1, 72° cylinder 2, 144° cylinder 4, 216° cylinder 5, 288° cylinder 3 Engine 606 Top dead center of cylinders 1 and 6 120° cylinder 2 and 4 240° cylinder 3 and 5 |
|
| 7 | Connect cylinder leakage tester (04) | ||
| Engine 111 | |||
| Engine 271 | AR01.00-P-1300-01VA | ||
| Engines 604, 605, 606 Cylinder leakage tester, see GOTIS http://gotis.aftersales.dalmlerchrysler.com |
AR01.00-P-1300-01HA | ||
| Figure | |||
| *604589006300 | |||
| *602589006300 | |||
| *602589002500 | |||
| Checking | |||
| 8 | Pressurize cylinder with compressed air and read off pressure loss on cylinder leakage testing unit (04) | ||
| Cylinder leaktightness: permissible loss total indication | *BE01.00-P-1001-02Z | ||
| Cylinder leaktightness: permissible losses at valves and cylinder head gasket | *BE01.00-P-1002-02Z | ||
| Cylinder leaktightness: permissible losses at pistons and piston rings | *BE01.00-P-1003-02Z | ||
Install retaining lock for crankshaft. |
|||
| Engine 111 except 111.951 /955 /981, engine 604, 605, 606 | AR03.30-P-5000HA | ||
| Engine 111.981 | |||
| Engine 111.951 /955, engine 271 except 271.944 /950 /952 | AR03.30-P-5000PR | ||
| Engine 271.950/ 952 | AR03.30-P-5000CW | ||
| Engine 271.944 | AR03.30-P-5000V | ||
| 9 | Test other cylinders according to engine firing order | Firing order | AR01.00-P-1300-03HA |
| 10 | Install in the reverse order |
CYLINDER LEAKAGE
| Number | Designation | All engines | |
|---|---|---|---|
| BE01.00-P-1001-02Z | Cylinder leaktightness: permissible loss total indication | % | ≤25 |
| BE01.00-P-1002-02Z | Cylinder leaktightness: permissible losses at valves and cylinder head gasket | % | ≤ 10 |
| BE01.00-P-1003-02Z | Cylinder leaktightness: permissible losses at pistons and piston rings | % | ≤ 20 |
