Remove/install retaining lock for crankshaft / ring gear - AR03.30-P-5000PR

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 111.951 in MODEL 203.035 /235 /735

ENGINE 111.955 in MODEL 203.045 /245 /745

ENGINE 271.940 in MODELS 203.042 /242 /742, 209.342 /442

ENGINE 271.941 in MODELS 211.042 /242

ENGINE 271.946 in MODELS 203.046 /246 /746

ENGINE 271.948 in MODELS 203.040 /740

ENGINE 271.921 in MODEL 203.730

ENGINE 271.942 in MODELS 203.043 /243 /743, 209.343

ENGINE 271.955 in MODELS 209.341 /441

ENGINE 271.956 in MODELS 211.041 /241

Fig 1: Identifying Starter

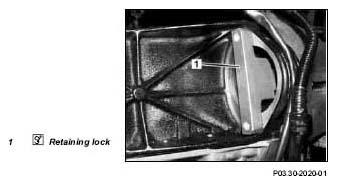

Fig 2: Identifying Retaining Lock

	Remove/install
1	Remove starter (M1)	Engines 111.951 / 955	AR15.30-P-7100P
		Engines 271.921/ 940/ 942/ 946/ 948/ 955	AR15.30-P-7100Q
		Engine 271.941/ 956	AR15.30-P-7100TK
2	Insert retaining lock (1)	Insert retaining lock (1) into starter opening and allow to engage in ring gear; crank engine at crankshaft if necessary.
		Retaining lock	Fig 3
3	Install in the reverse order

Fig 3: Identifying Retaining Lock (602 589 00 40 00)
