Wiper start suppression function - GF82.30-P-3008SK
MODEL 171.4

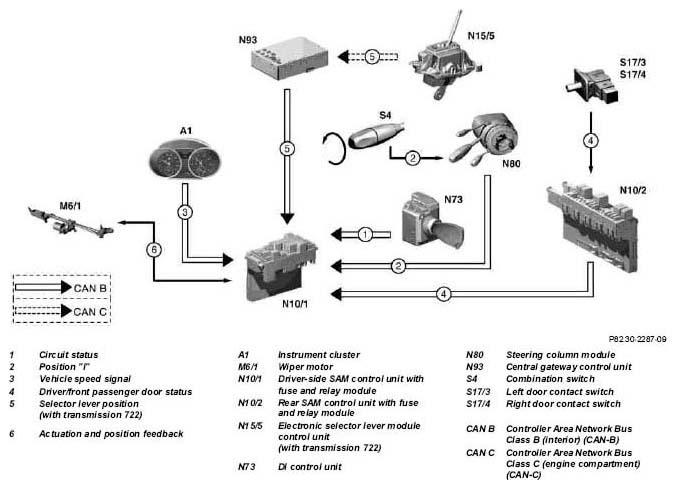

Function prerequisites:
- Circuit 15R ON
Function
Wiper operation is suppressed when:
- combination switch (S4) is in position "I" (interval) and
- driver or passenger-side door is open
- speed is less than 5 km/h.
Opening the driver or passenger-side door does not interrupt wiper operation that is currently in progress. The wipers move to the park position.
The wipers resume operation after suppression if:
- the clutch is actuated (with transmission 716) or
- the selector lever is moved from "P" or "N" to a drive mode (with transmission 722) or
- the speed is faster than 8 km/h or
- the combination switch (S4) is moved from position "I" to position "II" or position "III".
| Slowing down wiper motor, function | GF82.30-P-4007SK |
| Anti-block device for wiper motor, function | GF82.30-P-4008SK |
| Combination switch location/task | GF82.30-P-2101SK |
| Wiper motor location/task | GF82.30-P-4107SK |
| Driver-side SAM control unit with fuse and relay module, location/task/design | GF54.21-P-4109SK |
| Steering column module location/task | GF54.21-P-4125SK |
| Rear SAM control unit with fuse and relay module, location/task | GF54.21-P-4130SK |
| Electronic ignition switch control unit, location/purpose | GF80.57-P-4120SK |
| Central gateway control unit location/task | GF00.19-P-4100SK |
