Windshield intermittent wipe, function - GF82.30-P-3003SK
MODEL 171.4 except CODE (345a) Rain sensor
Function prerequisites:
- Circuit 15R ON
Function

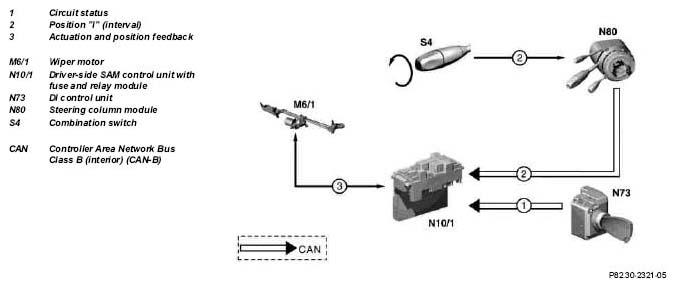

The intermittent wiper function is switched on by turning the combination switch (S4) to position "I" (interval). The driver-side SAM control unit with fuse and relay module actuates the wiper motor (M6/1) at fixed intervals in intermittent operation.
Interruption of intermittent pause
If another wiper function is requested during an intermittent pause, this function is executed without taking the intermittent pause into consideration. After completion of this function, the intermittent pause is started again.
| Slowing down wiper motor, function | GF82.30-P-4007SK |
| Anti-block device for wiper motor, function | GF82.30-P-4008SK |
| Driver-side SAM control unit with fuse and relay module, location/task/design | GF54.21-P-4109SK |
| Steering column module location/task | GF54.21-P-4125SK |
| Electronic ignition switch control unit, location/purpose | GF80.57-P-4120SK |
| Combination switch location/task | GF82.30-P-2101SK |
| Wiper motor location/task | GF82.30-P-4107SK |
