Remove/install inner door panel - AR72.10-P-0104SXS

MODEL 221.1 with CODE (Z07) Top protection with hydraulic power windows

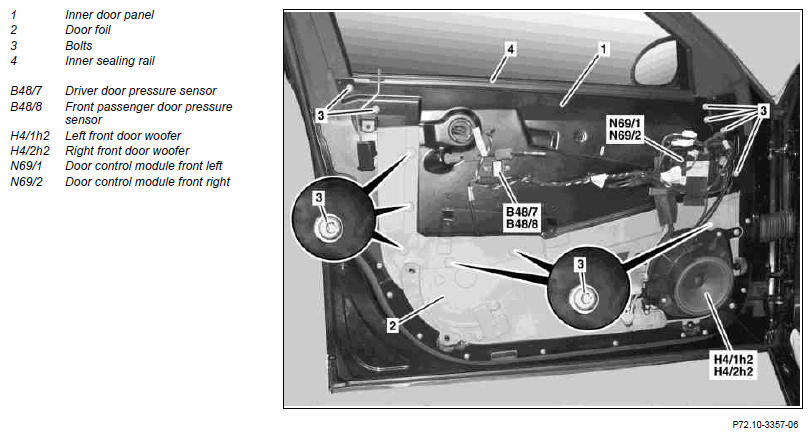

Fig 1: Identifying Inner Door Panel Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door lining from left or right front door		AR72.10-P-1000SXS
2	Disconnect electrical connector from driver door pressure sensor (B48/7) or front passenger door pressure sensor (B48/8)
3	Disconnect electrical connector on left front door woofer (H4/1h2) or right front door woofer (H4/2h2)
4	Remove all electrical wiring harnesses fastened to inner door panel (1)	Observe routing for electrical wiring harnesses on inner door panel (1).
5	Disconnect all electrical connectors from left front door control unit (N69/1) or right front door control unit (N69/2)
6	Press grommets for electrical wiring harnesses and release cable inward through inner door panel (1)
7	Separate door foil (2) from inner door panel (1)		AR72.10-P-1010SXS
8	Remove bolts (3)		*BA72.10-P-1001-01R
9	Remove inner door panel (1) from front door	Guide release cable and electrical wiring harnesses through inner door panel (1). Remove electrical wiring harnesses and hydraulic lines in front area of door inner panel (1) at side.
10.1	Remove inner sealing rail (4) from inner door panel (1)	When replacing inner door panel (1).
11.1	Remove driver door pressure sensor (B48/7) or front passenger door pressure sensor (B48/8) from inner door panel (1)	When replacing inner door panel (1). Manual pliers, see GOTIS http://gotis.aftersales.mercedes-benz.com
		Rivet 4.8 x 12.70	*BR00.45-Z-1011-13A
12.1	Remove left front door control unit (N69/1) or right front door control unit (N69/2) from inner door panel (1)	When replacing inner door panel (1).
			*BA72.10-P-1018-01R
13	Install in the reverse order
