Remove/install front door lining - AR72.10-P-1000SXS

MODEL 221.1 with CODE (Z07) Top protection

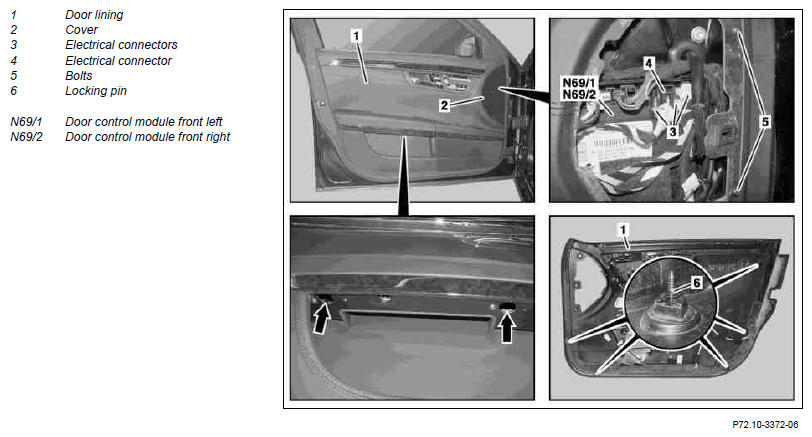

Fig 1: Identifying Front Door Lining Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
1	Switch off the ignition and remove the transmitter key from the EIS control unit
2	Clip cover (2) onto door lining (1) on left or right front door		Figure
3	Disconnect electrical connectors (3, 4) from left front door control unit (N69/1) or right front door control unit (N69/2)
4	Remove bolts (5)
5	Remove hidden bolts (arrows) below armrest		*BA72.10-P-1011-01R
6	Pry off door lining (1) at locking pins (6) on front door	Insert long wedge immediately next to the locking pins (6) and unclip locking pins (6) individually. Ensure that locking pins (6) do not tear out of door lining (1).
			Figure
7	Detach door lining (1) from front door until release cable is accessible	As soon as the door lining (1) is detached, ensure that the electrical wiring harness for the left front door tweeter or right front door tweeter is not under too much tension. Otherwise, the left front door tweeter or right front door tweeter can be damaged.
8	Unhook release cable from inside door opener
9	Disconnect electrical connector from left front door tweeter or right front door tweeter and remove door lining (1)
10	Install in the reverse order

FRONT DOOR

Number	Designation		Model 221 with code Z07/Z07+Z19
BA72.10-P-1011-01R	Bolt, door lining to inner door panel	Nm	8

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
