Remove/install longitudinal member paneling - AR88.80-P-6000SXS

MODEL 221.1 with CODE (Z07) Top protection

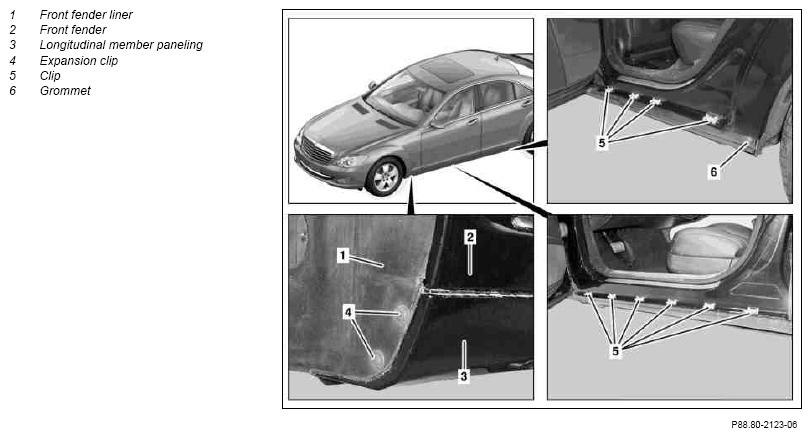

Fig 1: Identifying Longitudinal Member Paneling Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

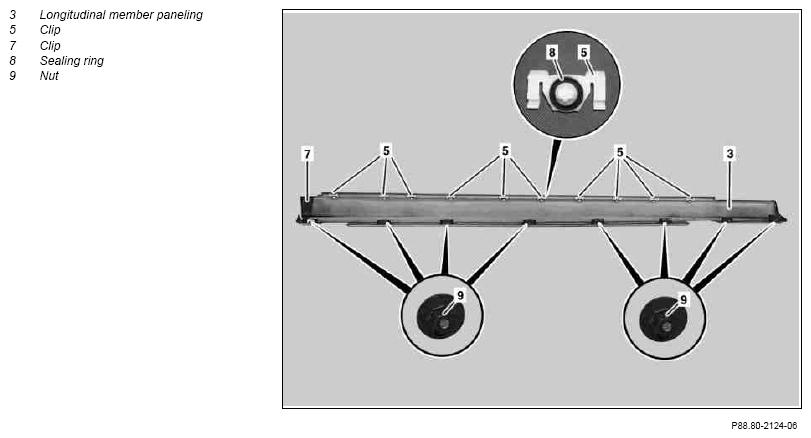

Fig 2: Identifying Longitudinal Member Paneling Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left and right rear door.		AR72.12-P-0600SXS
2	Remove underfloor protection plates in area of longitudinal member paneling (3).		AR61.40-P-1000SXS
3	Unscrew nuts (9) and loosen longitudinal member paneling (3) at bottom of longitudinal member.
4	Remove expansion clip (4) from front fender liner (1)
5	Unclip longitudinal member paneling (3), starting at front fender (2)	Installation:  Ensure that longitudinal member paneling (3) is properly seated at all attachment points on longitudinal member to prevent paint damage. Installation:  Insert clip (7) into grommet (6).
			Figure
6	Remove clips (5) on longitudinal member and attach to longitudinal member paneling (3)	Installation:  Ensure that sealing rings (8) are seated correctly.
7	Install in the reverse order
