Retrofitting front seat ventilation - AN91.30-P-0002M

MODEL 220

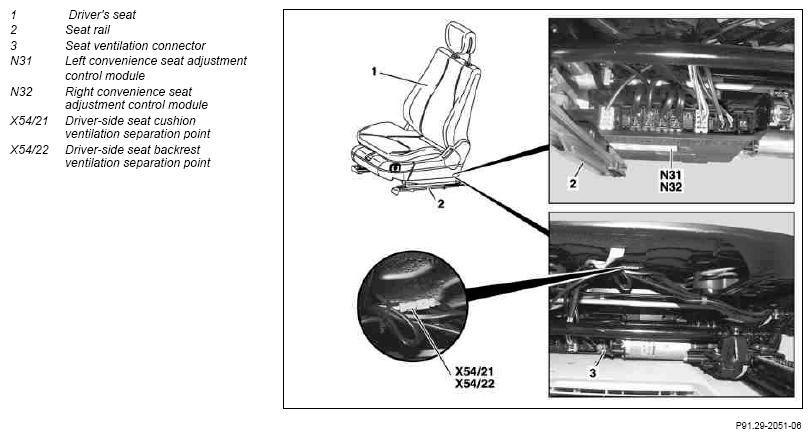

Fig 1: Identifying Front Seat Ventilation Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

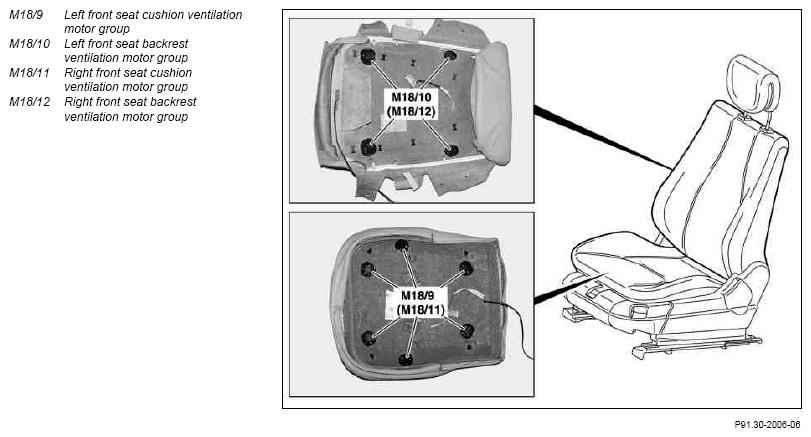

Fig 2: Identifying Front Seat Ventilation Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removal
1	Remove front seat backrest	Install front seat backrest with ventilation motors.
			AR91.10-P-1060M
2	Remove front seat cushion	Install front seat cushion with ventilation motors.
			AR91.10-P-1070M
	Installation
3	Connect driver-side seat cushion ventilation separation point (X54/21) and driver-side seat backrest ventilation separation point (X54/22) and fasten to seat cushion spring wire with cable strap.
4	Install seat ventilation connector (3) on convenience seat adjustment control module (N31/N32) contact strip	Connector is protected against plugging in incorrectly
5	Install seat ventilation switch unit		AN91.29-P-1000-01M
6	Code control modules with STAR diagnosis
7	Check for proper function
8	When the scope of equipment is changed, enter code or designation for corresponding special equipment in vehicle data card	Code 401

PARTS ORDERING NOTES

Part no.	Designation	Quantity
FG 91	Driver's seat cushion according to equipment	1
FG 91	Passenger seat cushion according to equipment	1
FG 91	Driver's seat backrest according to equipment	1
FG 91	Passenger seat backrest according to equipment	1
FG 82	Heated seat switch with ventilation, left front, according to equipment	1
FG 82	Heated seat switch with ventilation, right front, according to equipment	1
FG 99	Cable strap	2
