Remove/install driver seat cushion - AR91.10-P-1070M

MODEL 220.0/1 up to 31.8.02

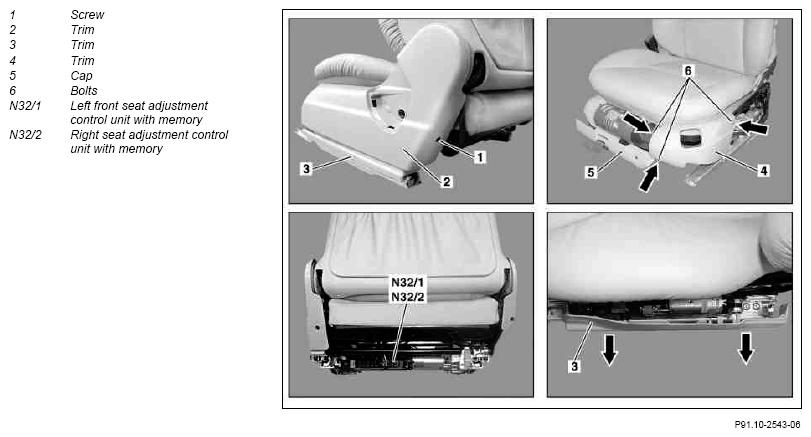

Fig 1: Identifying Driver Seat Cushion Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

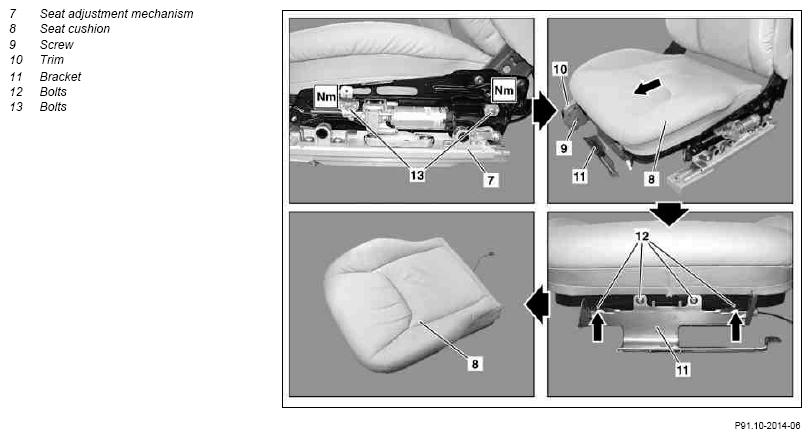

Fig 2: Identifying Driver Seat Cushion Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front seat		AR91.10-P-1000M
2	Remove screw (1) and remove paneling (2)
3.1	Open cap (5) and remove fire extinguisher	With fire extinguisher, code 682.
4	Remove screws (6, arrows) and remove paneling (4) and cap (5)
5	Pull off paneling (3) in direction of arrow	Ensure that retaining lugs are not damaged.
6	Disconnect connector from seat cushion heater on left front seat adjustment control unit with memory (N32/1) and right front seat adjustment control unit with memory (N32/2)
7.1	Remove multicontour backrest control unit from front seat	With driver seat multicontour backrest, code 404b, passenger seat, code 405b.	AR91.25-P-1750M
8	Remove screw (9) and remove paneling (10)
9	Remove screws (13) and remove seat cushion (8) forwards from the seat adjustment mechanism (7)	Bolt for seat cushion on seat adjustment mechanism.	*BA91.10-P-1003-01H
10	Remove screws (12, arrows) from the seat cushion (8) and remove bracket (11) from the seat cushion (8)
11	Install in the reverse order

FRONT SEATS

Number	Designation		Model 220 up to 30.11.01	Model 220 as of 01.12.01
BA91.10-P-1003-01H	Bolt, seat cushion to seat adjustment mechanism	Nm	15	15
