Remove/install front seat backrest - AR91.10-P-1060M
MODEL 220.0/1 up to 31.8.02
| Remove/install | |||
| 1 | Remove front seat | AR91.10-P-1000M | |

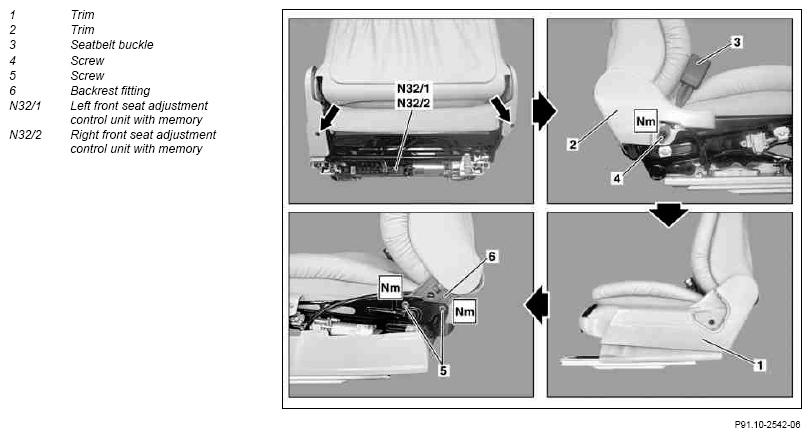

| 2 | Remove screw (arrow) on paneling (1) | ||
| 3 | Remove trim panel (1) | ||
| 4 | Remove bolt (4) and remove seat belt buckle (3) | *BA91.40-P-1003-01A | |
| 5 | Remove screw (arrow) on paneling (2) | ||
| 6 | Remove trim panel (2) | ||
| 7.1 | Separate pneumatic line connector for lumbar support air cushion | ||
| 7.2 | Remove multicontour backrest control unit from front seat | On vehicles with driver seat multicontour backrest, code 404b and passenger seat, code 405b. | AR91.25-P-1750M |
| 8 | Disconnect backrest and head restraint adjustment connector from left front seat adjustment control unit with memory (N32/1) and right front seat adjustment control unit with memory (N32/2) | ||
| 9 | Unscrew bolt (5, 2 each) from left and right backrest fitting (6) | *BA91.10-P-1002-01H | |
| 10 | Remove front seat backrest from the seat adjustment mechanism | ||
| 11 | Install in the reverse order |
FRONT SEATS
| Number | Designation | Model 220 up to 30.11.01 | Model 220 as of 01.12.01 | |
|---|---|---|---|---|
| BA91.10-P-1002-01H | Bolt at backrest fitting | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 220 | |
|---|---|---|---|
| BA91.40-P-1003-01A | Screw/nut on front seat belt buckle | Nm | 30 |
