Check seat belts and seat belt buckles for external damage and operation - AP91.40-P-9150SX

MODEL 216

MODEL 221.0/1

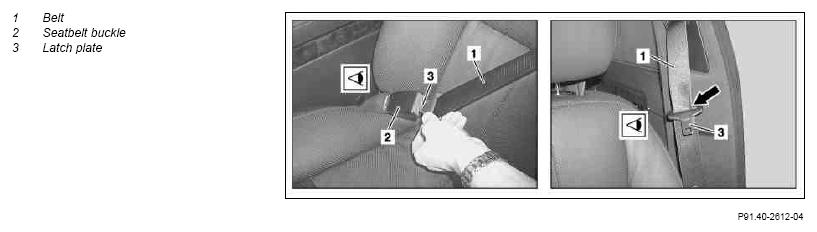

Fig 1: Checking Seat Belts And Seat Belt Buckles For External Damage And Operation

Courtesy of MERCEDES-BENZ USA

	Checking
		If a customer has rejected the replacement of a damaged seat belt or seat belt buckle (2) an appropriate remark should be made on the repair order.
1	Pull belt (1) all the way out and check for any signs of damage	If any fibers are cut through or if there are any chafing marks or any other signs of damage, then: ↓ Replace seat belt on front seat:
		Model 221	AR91.40-P-0630SX
		Model 216 Replace outer seat belt in the rear:	AR91.40-P-1010SC
		Model 221 except model 221.176 with code (Z07) Top protection with code (Z19) State limousine S600 Pullman Guard vis-a-vis seats	AR91.40-P-0681SX
		Model 221.176 with code (Z07) Top protection with code (Z19) State limousine S600 Pullman Guard vis-a-vis seats	AR91.40-P-0681SXS
		Model 216 Replace center seat belt in the rear:	AR91.40-P-0681SC
		Model 221 without code (224) Design of individual rear seat system, except model 221.176 with code (Z07) Top protection with code (Z19) State limousine S600 Pullman Guard vis-a-vis seats	AR91.40-P-0683SX
2	Check belt (1) for twisting (arrow) and remove twists (arrow)	If necessary, check whether the seat belt is twisted behind the trim (this requires a separate repair order): ↓ Remove/install seat belt on front seat:
		Model 221	AR91.40-P-0630SX
		Model 216 Remove/install outer seat belt in the rear:	AR91.40-P-1010SC
		Model 221	AR91.40-P-0681SX
		Model 216 Replace center seat belt in the rear:	AR91.40-P-0681SC
		Model 221 without code (224) Design of individual rear seat system, except model 221.176 with code (Z07) Top protection with code (Z19) State limousine S600 Pullman Guard vis-a-vis seats	AR91.40-P-0683SX
3	Check blocking function of inertia reel by pulling out the belt (1) abruptly	If problem exists, subject to separate repair order: ↓ Replace seat belt on front seat:
		Model 221	AR91.40-P-0630SX
		Model 216 Replace outer seat belt in the rear:	AR91.40-P-1010SC
		Model 221 except model 221.176 with code (Z07) Top protection with code (Z19) State limousine S600 Pullman Guard vis-a-vis seats	AR91.40-P-0681SX
		Model 221.176 with code (Z07) Top protection with code (Z19) State limousine S600 Pullman Guard vis-a-vis seats	AR91.40-P-0681SXS
		Model 216 Replace center seat belt in the rear:	AR91.40-P-0681SC
		Model 221 without code (224) Design of individual rear seat system, except model 221.176 with code (Z07) Top protection with code (Z19) State limousine S600 Pullman Guard vis-a-vis seats	AR91.40-P-0683SX
4	Check seat belt buckle (2) for damage and make sure that latch plate (3) engages correctly	If problem exists, subject to separate repair order: ↓ Replace seat belt buckle for front seat:
		Model 221	AR91.40-P-1515SX
		Model 216 Replace seat belt buckle for rear seat:	AR91.40-P-1515SC
		Model 221.0 with code (223) Rear bench with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints model 221.1 with code (223) Rear bench with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints model 221.1 with code (224) Design of individual rear seat system Model 221.0 without code (223) Rear bench with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints model 221.1 without code (223) Rear bench with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints model 221 without code (224) Design of individual rear seat system	AR91.40-P-1516SX
		Model 216	AR91.40-P-1516SC
