Remove/install valve springs and/or valve stem seals - AR05.30-P-3500GZB: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 164

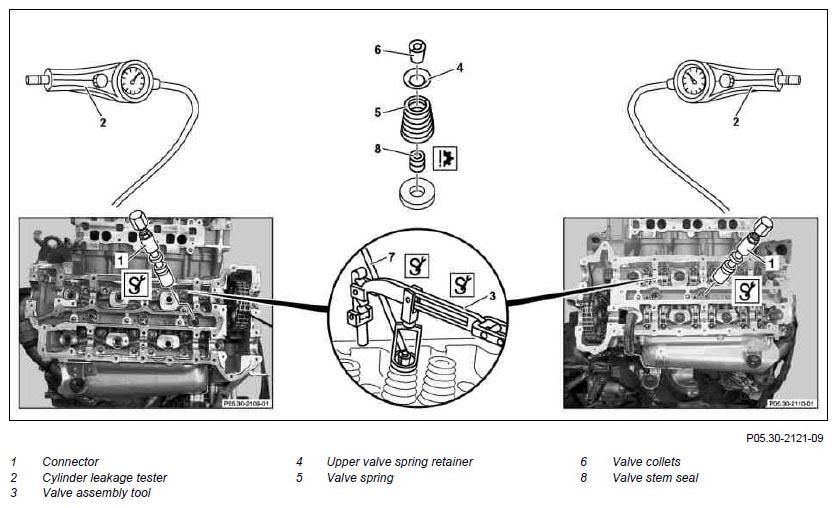

Fig 1: Identifying Valve Spring And/Or Valve Stem Seal Components (1 Of 2)
G06878005Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

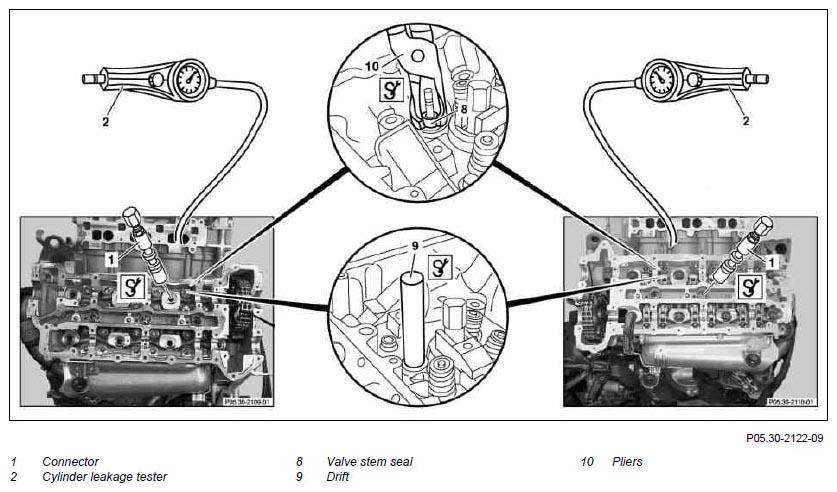

Fig 2: Identifying Valve Spring And/Or Valve Stem Seal Components (2 Of 2)
G06878006Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
1 Remove strut tower brace Model 164.8 only
IMPORTANT Remove spring dome strut at spring dome mounts.		 AR62.30-P-2500GY
2 Remove engine trim panel IMPORTANTInstallation:  Do not install engine cover until oil-tightness has been checked.
3 Remove camshafts   AR05.20-P-6992OM
4 Remove compensation elements NOTES Do not use a magnet. This would magnetize contact surfaces of the compensation element and the roller drag lever. This may cause minute iron debris to gather which can result in damage to the compensating element and cam.
IMPORTANTInstallation:  Reinstall compensation elements that are not replaced at the same position.		 AR05.00-P-2011GZB
5 Rotate piston of cylinder to be worked on to TDC IMPORTANT Crank the engine at the crankshaft in the running direction.
6 Connect cylinder leakage testing unit (2) to cylinder to be processed IMPORTANT Connect intermediate piece "R1/4" from compression tester kit with the connector (1) and plug the connector (1) into the injector bore hole. The connection piece (1) is secured using the original clamping claw.
IMPORTANT Calibrate the testing unit and remove the check valve. Subject compression chamber of cylinder to a pressure of about 5 bar.
SPECIAL TOOL Compression recorder Fig 4
SPECIAL TOOL Connection piece Fig 7
7 Put together assembly tool valves (3) and install on the cylinder head IMPORTANT Screw retaining fork on edge of cylinder head into thread and fit thrust piece vertically on upper valve spring retainer (4).
SPECIAL TOOL Compressor Fig 8
SPECIAL TOOL Valve assembly tools case Fig 3
8 Press together valve spring (5) with assembly tool valves (3)
9 Remove split valve spring retainer locks (6) IMPORTANT Use tweezers.
IMPORTANTInstallation:  Ensure split valve spring retainer locks (6) are properly fitted.
Tweezers, straight 160 mm with rounded tips
10 Remove upper valve spring retainer (4) and valve springs (5) IMPORTANTInstallation:  Valves must not be seated on the piston crown. Inspect upper valve spring retainer (4) for pitting, replace if required.
11 Remove valve stem seals using pliers (10) IMPORTANTInstallation:  Check valve stems for formation of burrs. Oil the valve stem seals and press on with a drift (9). AR05.30-P-3500-02PI
SPECIAL TOOL Pliers Fig 6
SPECIAL TOOL Drift Fig 5
12 Install in the reverse order
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running
 		 Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
13 Check for oil leaks with engine running
Fig 3: Identifying Case For Valve Installation Tools (111 589 25 61 00)
G06878007Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Compression Tester (001 589 78 21 00)
G06878008Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Drift (604 589 00 43 00)
G06878009Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Pliers (606 589 00 37 00)
G06878010Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Connector (611 589 00 63 00)
G06878011Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Identifying Compressor (640 589 00 61 00)
G06878012Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
