Remove/install hydraulic valve clearance compensating elements - AR05.00-P-2011GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 164

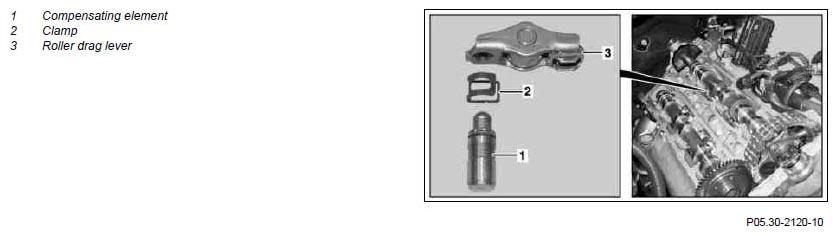

Fig 1: Identifying Compensating Element, Clamp & Roller Drag Lever

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Remove strut tower brace	Model 164.8 only Remove spring dome strut at spring dome mounts.	AR62.30-P-2500GY
2	Remove engine trim panel
3	Remove camshafts		AR05.20-P-6992OM
4	Remove compensating element (1)	Do not use a magnet. This would magnetize the contact surfaces of the compensating element (1) and the roller drag lever. This can cause minute iron chips to accumulate, which in turn can damage the compensation element (1) and the cam. Installation: Reinstall the compensation elements (1) that are not replaced at the same position.
5	Remove roller drag lever (3)
6	Slacken compensating element (1) from roller drag lever (3)	Pry off clamp (2) by hand.
7	Install in the reverse order
