Test compression pressure - AR01.00-P-1200GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 211

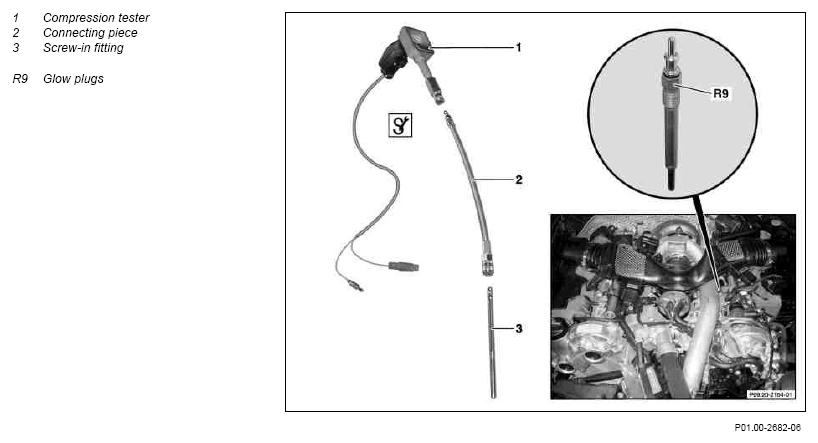

Fig 1: Identifying Compression Tester, Connecting Piece, Screw-In Fitting And Glow Plugs
G07252869Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
DANGER Risk of injury  to skin and eyes caused by handling hot or glowing objects. Wear safety gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
1 Bring engine to operating temperature (approx. 80°C) IMPORTANT Test compression pressure when engine is at normal operating temperature.
2 Switch off ignition.
3 Remove glow plugs (R9)   AR15.20-P-4111GZB
4 Crank engine with starter IMPORTANT Do not crank engine using the key in electronic ignition/starter switch (EIS) control unit, but use contact switch for compression recorder (1) instead. Crank engine several times to eliminate combustion residues in the cylinder. AR01.10-P-0110GZB
SPECIAL TOOL Compression recorder Fig 3
5 Insert screw-in fitting (3) into cylinder. IMPORTANT Insert screw-in fitting (3) with check valve installed into glow plug hole of cylinder to be tested.
SPECIAL TOOL Screw-in fitting M8 Fig 4
SPECIAL TOOL Screw-in fitting M10 Fig 5
6 Connect compression recorder (1) to screw-in fitting (3) IMPORTANT Connect compression recorder (1) with connection line (2) to screw-in fitting (3).
SPECIAL TOOL Intermediate piece Fig 2
SPECIAL TOOL Compression recorder Fig 3
INSPECT Checking
7 Test compression pressure IMPORTANT Do not crank engine using the key in electronic ignition/starter switch (EIS) control unit, but use contact switch for compression recorder (1) instead.
IMPORTANT To test compression pressure, the engine must be turned over using the starter for at least eight revolutions, see:
↓
Crank engine with starter AR01.10-P-0110GZB
8 Compare pressure readings obtained with specified pressures IMPORTANT When remaining under minimum compression pressure or when exceeding the permissible difference between individual cylinders, see:
↓
Check cylinders for leaks AR01.00-P-1300GZB
Compression installation tolerance or new value *BE01.00-P-1001-01A
Compression pressure permissible difference between individual cylinders *BE01.00-P-1003-01A
9 Install in the reverse order
COMPRESSION PRESSURE

Number Designation Engine 642.9 Engine 642.8
BE01.00-P-1001-01A Compression pressure installation tolerance or new value bar 27 to 32 23 to 30
BE01.00-P-1003-01A Compression pressure permissible difference between individual cylinders bar ≤ 3 ≤ 3
Fig 2: Identifying Intermediate Piece (611 589 02 63 00)
G07252870Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Compression Tester (001 589 76 21 00)
G07252871Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Screw-In Fitting (640 589 00 63 00)
G07252872Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Female Connector (611 589 01 63 00)
G07742755Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
