Remove/install glow plugs - AR15.20-P-4111GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164

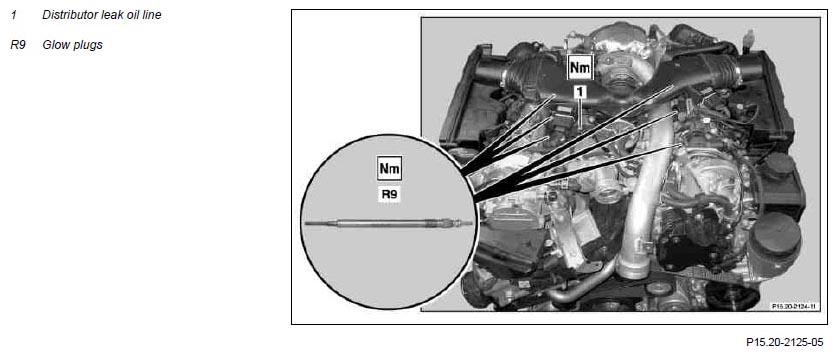

Fig 1: Identifying Glow Plugs And Distributor Leak Oil Line

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Turbocharger without coolant cooling

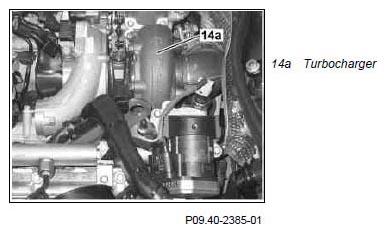

Fig 2: Identifying Turbocharger Without Coolant Cooling

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Turbocharger with coolant cooling

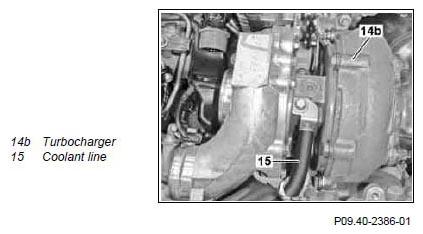

Fig 3: Identifying Turbocharger With Coolant Cooling

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes for ceramic glow plugs		AH15.20-P-0001-01A
1	Removes strut tower brace	Model 164.8 only Remove strut tower brace from strut tower mounts.	AR62.30-P-2500GY
2	Remove engine trim panel		AR01.10-P-2405GZB
3	Remove engine air intake duct downstream of air filter		AR09.10-P-8130GZB
4	Unscrew distributor leak oil line (1)	On vehicles without coolant-cooled turbocharger (14a)
			*BA07.16-P-1023-01C
5	Remove engine wiring harness on rail	On vehicles with coolant-cooled turbocharger (14b) Installation: Install new cable ties.
6	Disconnect electrical connectors for glow plugs (R9)		Fig 5
7	Remove glow plugs (R9)	If the releasing torque of the glow plugs (R9) is greater than 25 Nm, it is recommended to bring the engine up to operating temperature in order to avoid breaking off the glow plugs (R9). Warm cylinder head up to about 90°C for a removed cylinder head.
			*BA15.20-P-1001-01F
			Fig 4
	Clean
8	Clean glow plug bay if required	Cylinder brush, Perlon, 10 mm dia. Cylindrical brush, Perlon, 6 mm Ø
9	Install in the reverse order

PREGLOW SYSTEM

Number	Designation			Engine 642
BA15.20-P-1001-01F	Glow plug on cylinder head	M8	Nm	11
BA15.20-P-1001-01F	Glow plug on cylinder head	M10	Nm	18

COMMON RAIL DIESEL INJECTION (CDI)

Number	Designation			Engine 642
BA07.16-P-1023-01C	Leak oil line on charge air distribution line	M6x23	Nm	12

Fig 4: Identifying Socket Wrench (001 589 80 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Pliers (611 589 00 37 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
