Cranking engine with starter - AR01.10-P-0110GZB: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164
| Removing/installing | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near engine | Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 1 | Switch ignition off, remove ignition key (transmitter key) | Remove the Keyless Go transmitter card or transmitter key from the vehicle and store beyond the reach of the transmitter (at least 2 m). |
|
| 2 | Remove strut tower brace | Remove strut tower brace from strut tower mounts. | AR62.30-P-2500GY |
| 3 | Remove engine cover | ||

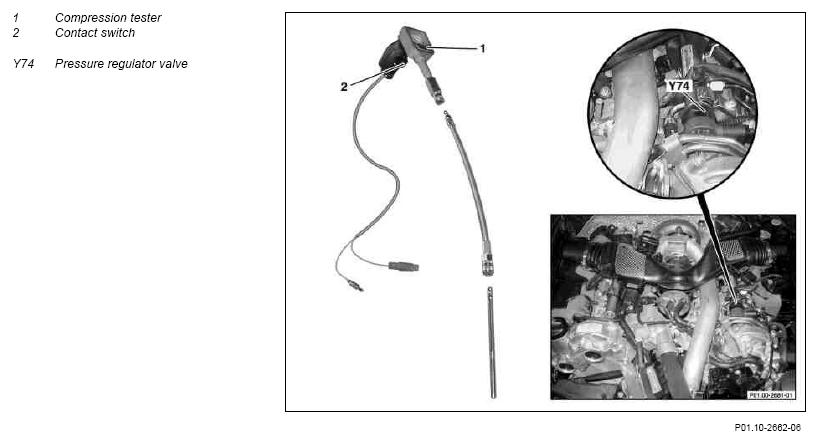

| 4 | Unplug connector at pressure regulator valve (Y74) | ||
| 5 | Connect compression recorder (1) | AR01.10-P-0010-01GZ | |
| Figure | |||
| Figure | |||
| 6 | Crank engine with starter | ||
| 7 | Install in reverse order | ||
| 8 | Read out fault memory with STAR DIAGNOSIS and erase if necessary | Only if the ignition was switched on during the process | AD00.00-P-2000-04A |
