Connect compression tester - AR01.10-P-0010-01GZ

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Compression Recorder (001 589 76 21 00)
G07252887Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Identifying Electrical Connection Kit (220 589 00 99 00)
G07252888Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Remove cover of left fuse and relay box in the engine compartment.

    IMPORTANTInstallation:  Check rubber seal in cover, replace if required.

  2. Unlock plug (2) on driver-side SAM control unit with fuse and relay module (N10/1) and detach.
  3. Fold out cover (3a).

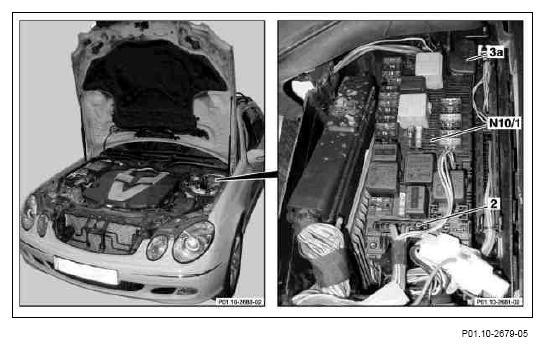

    Fig 3: Locating Driver-Side SAM Control Unit With Fuse And Relay Module
    G07252889Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  4. SPECIAL TOOL Connect compression recorder (01) to connection (3) and connect up using the adapter line (11) from the SPECIAL TOOL electrical connection kit at socket "5" on the plug (2).

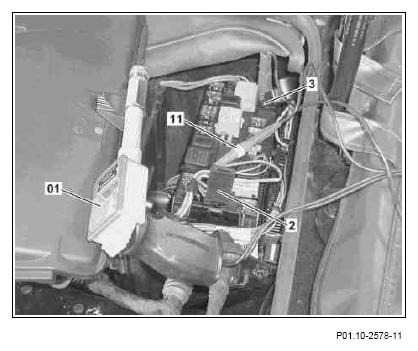

    Fig 4: Connecting Compression Recorder
    G07252890Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
