Remove/install coolant thermostat - AR20.10-P-2460GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164

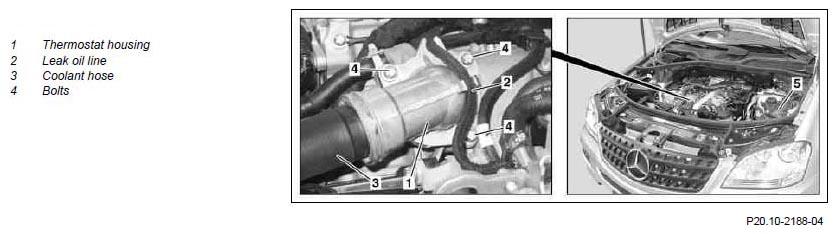

Shown on model 164

Fig 1: Identifying Coolant Thermostat Components - Model 164

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

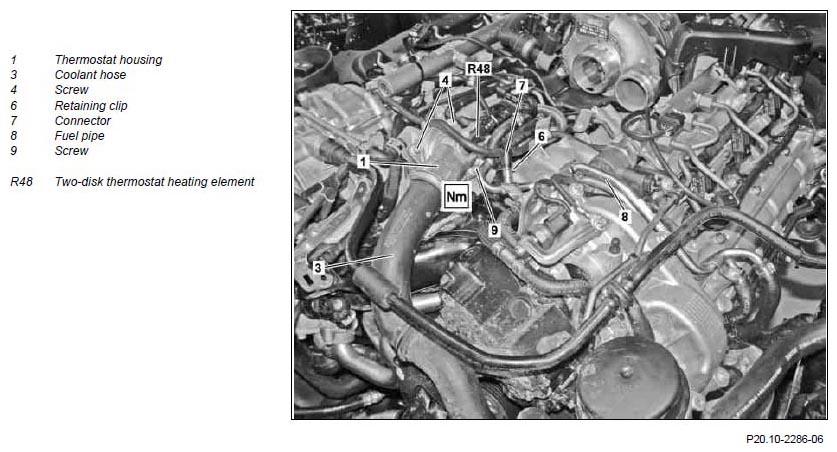

Shown on vehicles with coolant-cooled turbocharger

Fig 2: Identifying Coolant Thermostat Components - With Coolant-Cooled Turbocharger

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

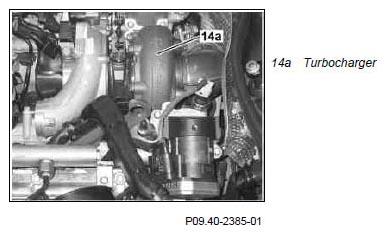

Turbocharger without coolant cooling

Fig 3: Identifying Turbocharger Without Coolant Cooling

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

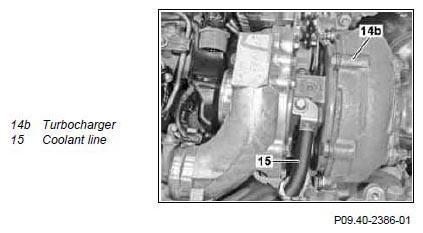

Turbocharger with coolant cooling

Fig 4: Identifying Turbocharger With Coolant Cooling

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on coolant		AH20.00-N-2080-01A
	Notes on coolant level		AH20.00-P-1142-01GZB
1	Removes strut tower brace	Model 164.8 only Remove strut tower brace from strut tower mounts.	AR62.30-P-2500GY
2	Remove engine charge air duct on turbocharger	On vehicles with coolant-cooled turbocharger (14b).	AR09.41-P-8622GZB
3	Remove bottom section of soundproofing		AR94.30-P-5300GZ
4	Drain coolant at radiator	Catch coolant in suitable vessel	AR20.00-P-1142GZB
	Notes on coolant	All engines	AH20.00-N-2080-01A
5	Remove the leak oil line (2) from the bracket of the thermostat housing (1)
6	Disconnect electrical connector for two-disk thermostat heating element (R48)	For vehicles with a heated coolant thermostat
7	Disconnect coolant hose (3) at thermostat housing (1)	See "Disconnect Henn coupling". Installation: Check condition of coolant hose (3), seal and grab handle; replace if necessary.	AR09.41-P-1311-01AL
8	Remove securing clip (6) and take connector (7) for the fuel line (8) out of the bracket	On vehicles with coolant-cooled turbocharger (14b)
9.1	Remove bolts (4)	On vehicles with coolant-cooled turbocharger (14b)
			*BA20.10-P-1002-01S
9.2	Remove bolts (4, 9)	For vehicles with turbocharger (14b) with coolant cooling: the fuel line (8) must be pushed slightly to the side to pass the bolt (9) by at the fuel line (8). This must not be bent to avoid causing damage to the fuel line (8).
10	Remove thermostat housing (1) with coolant thermostat	Installation: Replace sealing ring.
11	Install in the reverse order
12	Pour in coolant and bleed cooling system		AR20.00-P-1142-04A
			Fig 5
			Fig 6
	Coolant specifications	Sheet 310.1	BB00.40-P-0310-01A
	Anticorrosion/antifreeze agents (Sheet 325.0)	Sheet 325.0	BB00.40-P-0325-00A
		Cooling system	*BF20.00-P-1001-02W
	Checking
13	Inspecting cooling system for leaks		AR20.00-P-1010GZB

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation		Engine 642
BA20.10-P-1002-01S	Bolt, coolant thermostat housing to charge air manifold	Nm	9

COOLING SYSTEM

Number	Designation			Engine 642 in model 164, 251
BF20.00-P-1001-02W	Cooling system	Total filling capacity	≈ Liters	6.5
		Antifreeze/water	Up to -37°C	50/50
			up to -45°C	55/45
		Service specifications	Sheet	BB00.40-P-0310-01A
		Service specifications	Sheet	BB00.40-P-0325-00A

Fig 5: Identifying Test Cap (210 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Vacuum-Type Cooling System Filler (285 589 00 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
