Remove/install engine charge air channel at turbocharger - AR09.41-P-8622GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODEL 164, 251
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Removes strut tower brace | Model 164.8 only |
AR62.30-P-2500GY |
| 2 | Remove engine cover | Model 164 | AR01.10-P-2405GZB |
| Model 251 | AR01.10-P-2405RTB | ||
| 3 | Remove engine charge air channel upstream of charge air cooler | AR09.41-P-8623GZB | |
| 4 | Remove bolt (1) | *BA09.41-P-1001-01J | |
| 5 | Loosen coolant hose from bracket | Engine 642.8 | |

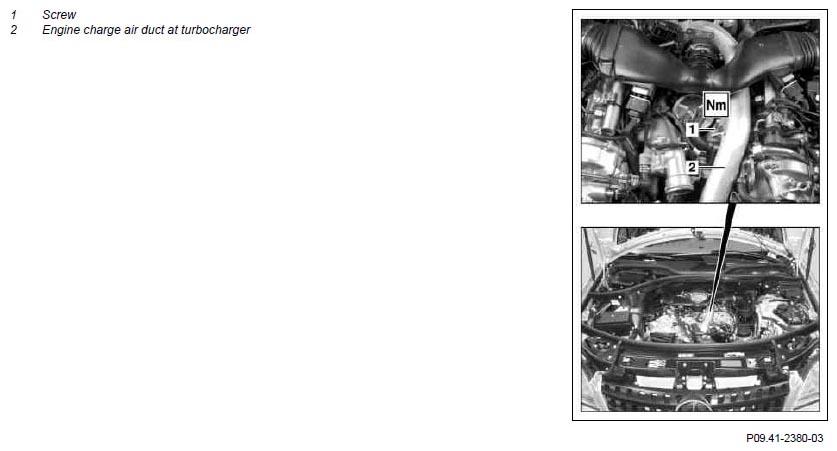

| 6 | Remove engine charge air channel at turbocharger (2) towards the front | ||
| 7 | Install in the reverse order |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA09.41-P-1001-01J | Bolt, engine charge air channel of turbocharger to charge air manifold | Nm | 12 |
