Remove/install oil level switch - AR18.40-P-4115GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164

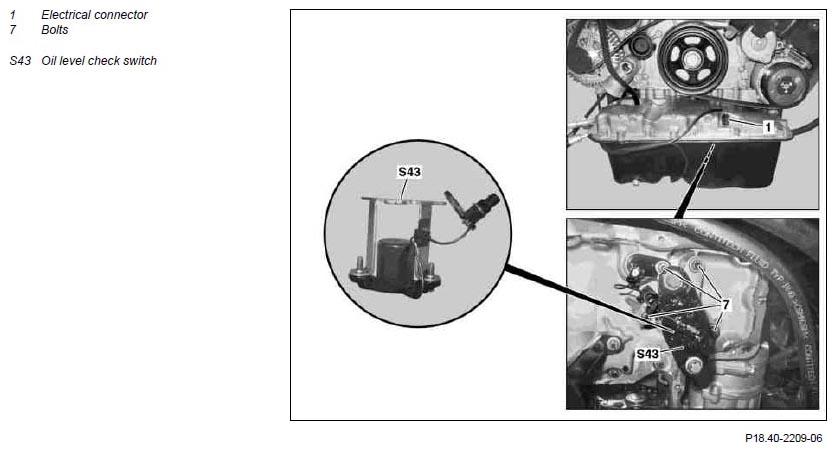

Fig 1: Identifying Oil Level Check Switch, Electrical Connector And Bolts
G06878149Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
1 Remove oil pan bottom section   AR01.45-P-7555GZB
2 Disconnect electrical connector (1) at oil level check switch (S43)
3 Remove bolts (7) at oil level check switch (S43) TORQUE SPECIFICATION *BA18.40-P-1003-01M
4 Remove oil level check switch (S43) IMPORTANTInstallation:  Install new gasket
5 Install in the reverse order
INSPECT Checking
6 Check engine oil level, and correct NOTES In order to avoid measurement errors, vehicle must be parked on an even surface.
IMPORTANT Shut off engine once it has reached operating temperature and wait approx. 5 minutes before checking engine oil level.		 AR18.00-P-3035-01PI
FLUID SPECIFICATION Without particulate filter *BF18.00-P-1001-01A
FLUID SPECIFICATION With code 474 Particulate filter *BF18.00-P-1001-01S
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
7 Check for leaks with engine running IMPORTANT Carry out a visual inspection only.

TORQUE SPECIFICATIONOil level/oil pressure sensor

OIL LEVEL AND OIL PRESSURE SENSOR

Number Designation Engine 642
BA18.40-P-1003-01M Bolt at oil level check switch Nm 11

FLUID SPECIFICATIONEngine lubrication system

ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.940/950 with particulate filter Engine 642.820/870/872 with particulate filter
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liters 8.5 8.5
Specifications for Operating Fluids Sheet BB00.40-P-0228-51A BB00.40-P-0228-51A
Sheet BB00.40-P-0229-31A BB00.40-P-0229-31A
Sheet BB00.40-P-0229-51A BB00.40-P-0229-51A

FLUID SPECIFICATIONEngine lubrication system

ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.940/950 without particulate filter Engine 642.820/870/872 without particulate filter
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liters 8.5 8.5
Specifications for Operating Fluids Sheet BB00.40-P-0228-03A BB00.40-P-0228-03A
Sheet BB00.40-P-0228-05A BB00.40-P-0228-05A
Sheet BB00.40-P-0228-51A BB00.40-P-0228-51A
Sheet BB00.40-P-0229-03A BB00.40-P-0229-03A
Sheet BB00.40-P-0229-31A BB00.40-P-0229-31A
Sheet BB00.40-P-0229-05A BB00.40-P-0229-05A
Sheet BB00.40-P-0229-51A BB00.40-P-0229-51A
