Remove/install SCR frame module control unit - AR14.40-P-2020GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164, 251 with CODE (U42) BlueTEC diesel exhaust treatment (SCR)
MODIFICATION NOTES
| 22.10.08 | Information on preventing damage to electronic components due to electrostatic discharge newly included | |
| Bring ignition lock in position "0" - added | Step 1 | |
| Notes on use, substance properties and handling of AdBlue® - added | Step 10 |
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Bring ignition lock into position "0" | ||

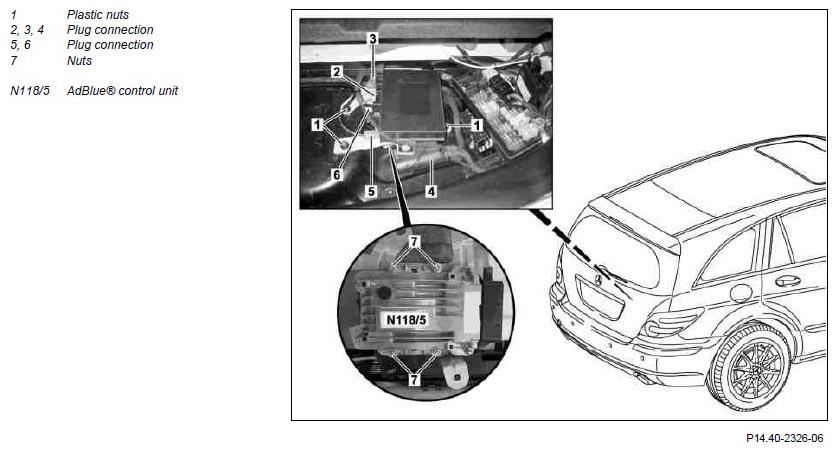

| 2 | Expose AdBlue® control unit (N118/5) in trunk | ||
| 3 | Disconnect and detach electrical connectors (2, 3, 4, 5, 6) on KEYLESS-GO control unit (N69/5) | Vehicles with Keyless - Go code 889: | |
| 4 | Unscrew plastic nuts (1) on holder for the KEYLESS-GO control unit (N69/5) and AdBlue® control unit (N118/5) | ||
| 5 | Loosen and turn holder for the KEYLESS-GO control unit (N69/5) and AdBlue® control unit (N118/5) | ||
| 6 | Unscrew nuts (7) | ||
| 7 | Disconnect electrical connector on AdBlue® control unit (N118/5) | ||
| 8 | Remove AdBlue® control unit (N118/5) | ||
| 9 | Install in the reverse order | ||
| Risk of burn injuries and scalding when working at AdBlue® lines and the components attached to them. Risk of injury to skin and eyes when handling AdBlue®. Risk of poisoning from swallowing AdBlue® | Only pour AdBlue® into suitable containers. Only begin work on the exhaust aftertreatment system after releasing the pressure. | AS14.40-Z-0001-01A | |
| 10 | Fill AdBlue® tank. | After replacing the AdBlue® control unit (N118/5) | AR14.40-P-2014-02GZB |
Ensure utmost cleanliness. Attach rear apron protector and cover AdBlue® tank over a large area around the filler neck with a number of layers of absorbent paper to prevent fouling of the interior coverings. Fender and rear apron protector gotis://K 68-80 01.0 BLUETEC AdBlue® filling pumps gotis://D 09/14/49 01.1 |
|||
AdBlue® tank |
*BF14.40-P-1001-01A | ||
| Notes on use, material properties and handling AdBlue® | AH14.40-N-0001-01AB | ||
| NOx reducing agent AUS 32 ("AdBlue®") for SCR systems | Sheet 352.0 | BB00.40-P-0352-00A | |
| 11 | Write fill level of AdBlue® tank using STAR DIAGNOSIS in the AdBlue® control unit (N118/5) | After replacing the AdBlue® control unit (N118/5) | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
FILLING CAPACITY FOR BLUETEC (SCR) DIESEL EXHAUST TREATMENT
| Number | Designation | Engine 642 model 164.1 | Engine 642 model 164.8 | ||
|---|---|---|---|---|---|
| BF14.40-P-1001-01A | AdBlue® tank | Filling capacity for the initial filling | Liters | 28.1 | 33.3 |
| Specifications for service products | Sheet | BB00.40-P-0352-01A | BB00.40-P-0352-01A | ||
FILLING CAPACITY FOR BLUETEC (SCR) DIESEL EXHAUST TREATMENT
| Number | Designation | Engine 642 in model 251 | ||
|---|---|---|---|---|
| BF14.40-P-1001-01A | AdBlue® tank | Filling capacity for the initial filling | Liters | 29.0 |
| Filling capacity for a service filling | Liters | 28.2 | ||
| Specifications for service products | Sheet | BB00.40-P-0352-01A | ||
