AdBlue tank - Correct fluid level - AP14.40-P-1410BT
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164 with CODE U42 (BlueTEC diesel exhaust treatment (SCR))
| Risk of burn injuries and scalding when working at AdBlue lines and the components attached to them. Risk of injury to skin and eyes when handling AdBlue. Risk of poisoning caused by swallowing AdBlue | Pour AdBlue into suitable containers only. Wait until the pressure is released before starting any work on the exhaust aftertreatment system. | AS14.40-Z-0001-01A | |
| Notes on use, material properties and handling of AdBlue® | AH14.40-N-0001-01AB | ||
| Removing | |||

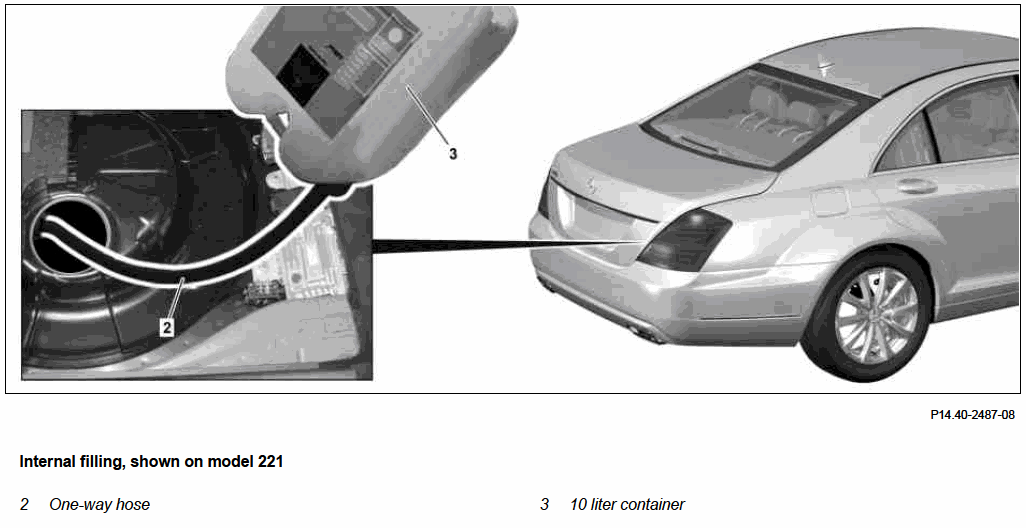

| 1 | Open liftgate or trunk lid and clear access to filler opening of the AdBlue® tank | ||
| 2 | Fill AdBlue® container with new AdBlue® | AR14.40-P-2014-02GZB | |
| The filling tools are designed in such a way as to leave an unfilled space in the AdBlue® container after switching off. Never pour in more AdBlue® after switching off otherwise there a risk of damaging the AdBlue® tank! For USA and Canada only Filling using BLUETEC AdBlue® filling pumps. |
|||
| *BF14.40-P-1001-01A | |||
| Installing | |||
| 3 | Seal filler opening of AdBlue® container and close liftgate or trunk lid | ||
FILLING CAPACITY FOR BLUETEC DIESEL EXHAUST TREATMENT (SCR)
| Number | Designation | Engine 642 model 164.1 | Engine 642 model 164.8 | ||
|---|---|---|---|---|---|
| BF14.40-P-1001-01A | AdBlue tank | Filling capacity for the initial filling | Liters | 28.1 | 33.3 |
| Filling capacity for a service filling | Liters | 26.6 | 31.7 | ||
| Specifications for service products | Sheet | BB00.40-P-0352-00A | |||
