Remove/install intake port shutoff sensor - AR09.20-P-1315GZC
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODEL 164, 251 with CODE (U42) BLUETEC diesel exhaust gas cleaning
| Remove/install | |||
| 1 | Remove intake port shutoff motor (M55) | AR09.20-P-1314GZB | |

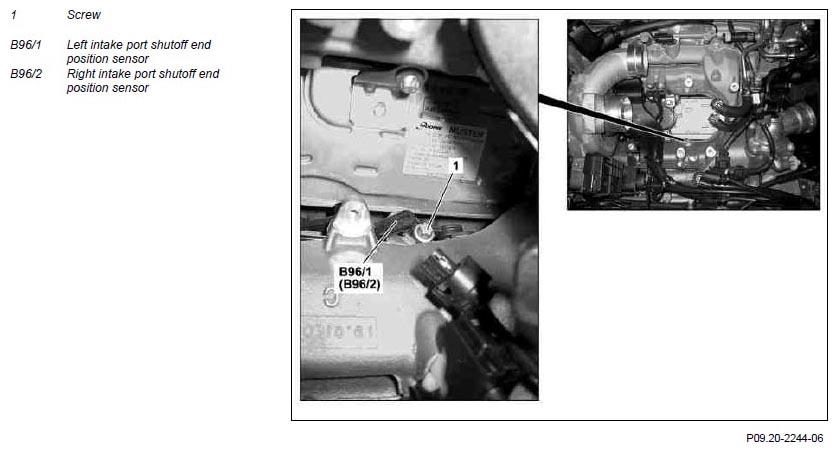

| 2 | Disconnect the electrical connector of LH intake port shutoff end position sensor (B96/1) or RH intake port shutoff end position sensor (B96/2) | ||
| 3 | Unscrew bolt (1) | *BA07.04-P-1016-01G | |
| 4 | Take out LH intake port shutoff end position sensor (B96/1) or RH intake port shutoff end position sensor (B96/2) | ||
| 5 | Install in the reverse order |
SENSORS
| Number | Designation | Engine 642 with particle filter | |
|---|---|---|---|
| BA07.04-P-1016-01G | Bolt, position sensor of end position sensor to charge air distribution line | Nm | 8 |
