Remove/install charge air hose downstream of the charge air cooler - AR09.41-P-8625RTB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642.950 in MODEL 251.020/022/122
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood | AR88.10-P-1000GZ | |
| 2 | Remove right engine intake air duct | ||

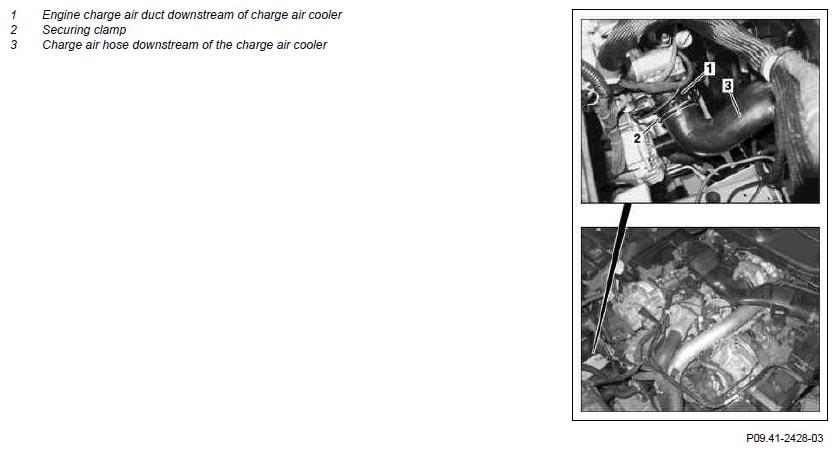

| 3 | Disconnect charge air hose downstream of charge air cooler (3) at charge air cooler | ||
| 4 | Disconnect charge air hose downstream of charge air cooler (3) at engine charge air duct downstream of charge air cooler (1) | ||
| 5 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near engine | Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out engine test run |
